DETAIL




Product Properties

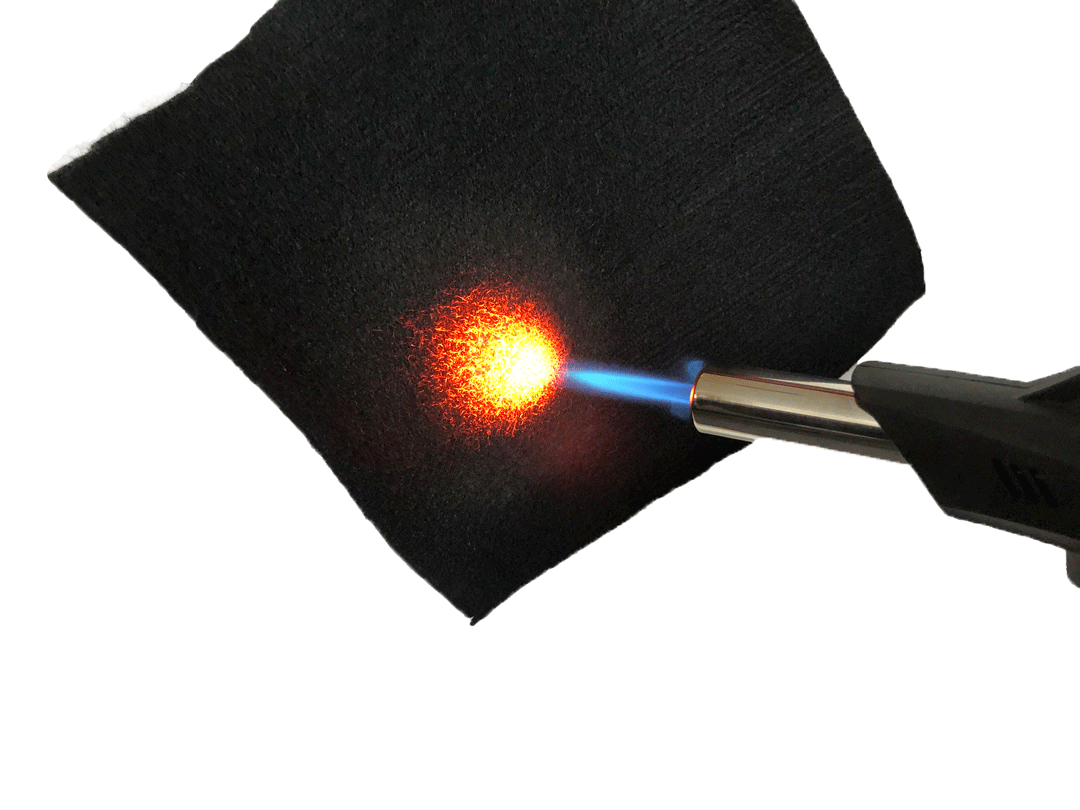

  1. Excellent flame retardant properties, the felt made from preox has very good flame retardance property, the limited oxygen index is more than 45%. So it is a very good choice for BBQ mat.

  2. Excellent Heat Insulation properties, can be used in many area such as bus, trains, cars, micro wave oven and etc.

  3. No Melt Drip properties, flame resistant with self-extinguish nature and non-melt drip characteristic.

  4. Excellent high temperature resistance, can be used continuously in a very wide temperature range from -196℃ to 360℃. It has no decomposing or melting at 600℃.

  5. Soundproof


Technical Data

Material:

 100% pre-oxidized fiber LOI(Limit oxygen index): 45%
Pattern:  Nonwoven Weight:

430gsm
Weave:
 Needle-Punched Width: 150cm
Thickness: 4mm Roll length: 100m


Technical Data

Material:

 100% pre-oxidized fiber
Pattern:  Nonwoven
Weave:
 Needle-Punched
Thickness: 4mm
LOI(Limit oxygen index): 45%
Weight: 430gsm
Width: 150cm
Roll length: 100m


Product Description

This felt is made from PANOX fiber by advanced needle machine, the oxygen index is more than 45, can be used in many area such as car, train, BBQ mat, industry and etc. it has flame retardant, heat insulation and withstand high temperatures.


Product Details
Content: 100% pre-oxidized fiber

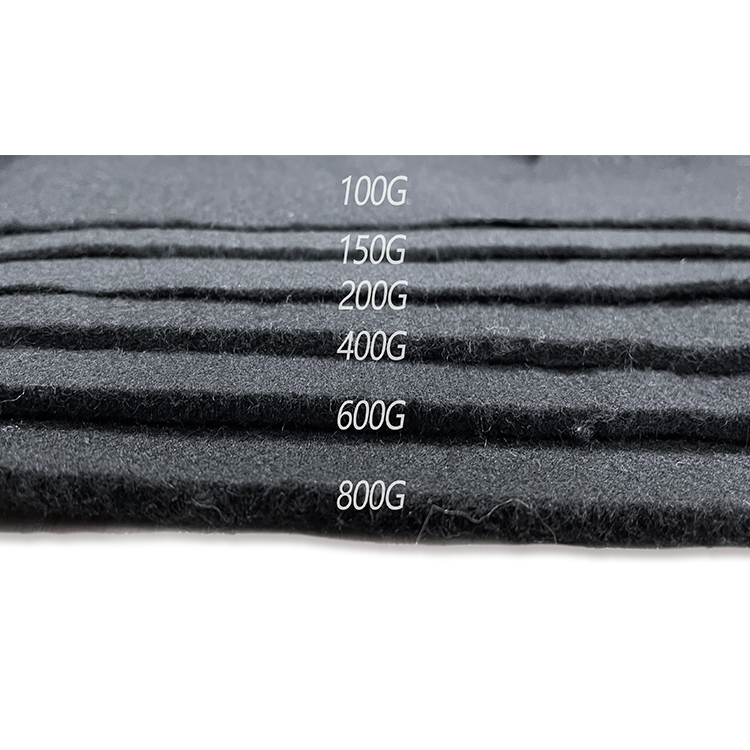

Specification : 430gsm, other customized weight(100-1000gsm) is acceptable
Color: Black
width:

100cm, customized width is available
Feature:

Low Shrinkage, High Temperature Resistant, Chemical-Resistant, Abrasion-Resistant, flame retardant
MOQ: 10 kilograms
Meet standard : AATCC/ASTM, EN, ISO, GB, AS
Application : Used for car, trains, transportation, industry. Insulation felt, flame retardant curtains, Fire Blanket, soundproof cotton, BBQ mat.


Parameters of the same type

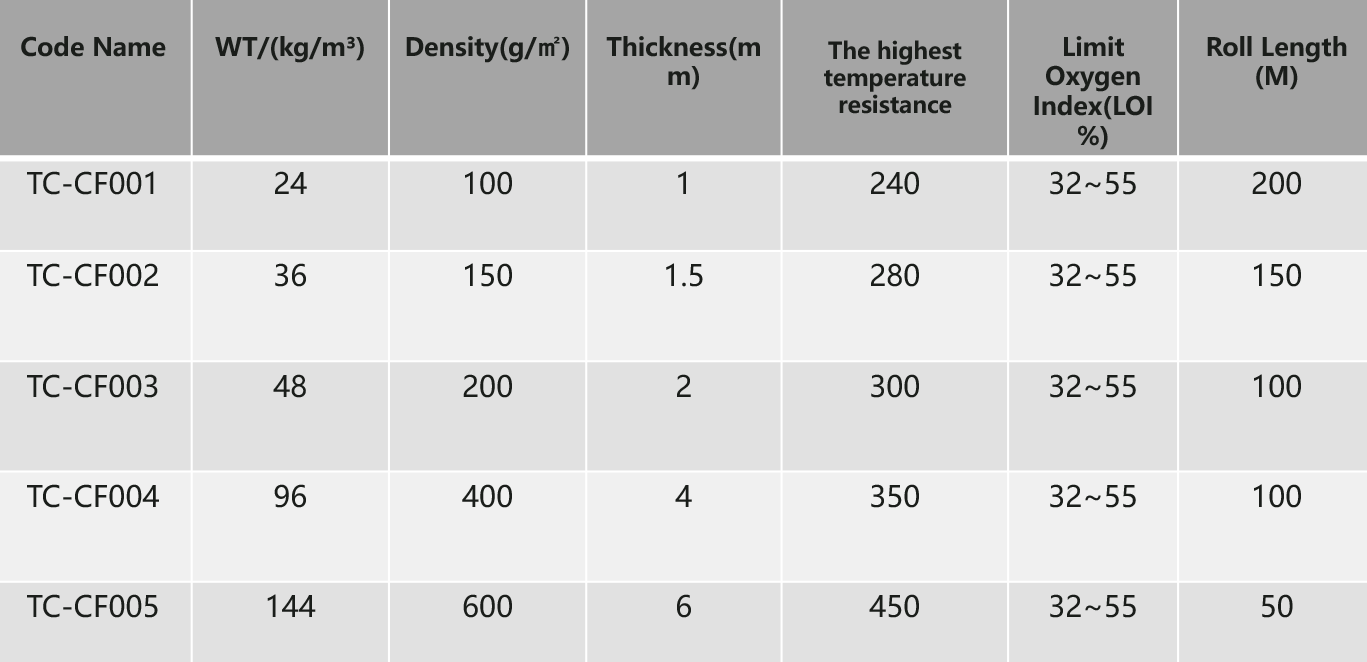

parameters of panox felt




Applications

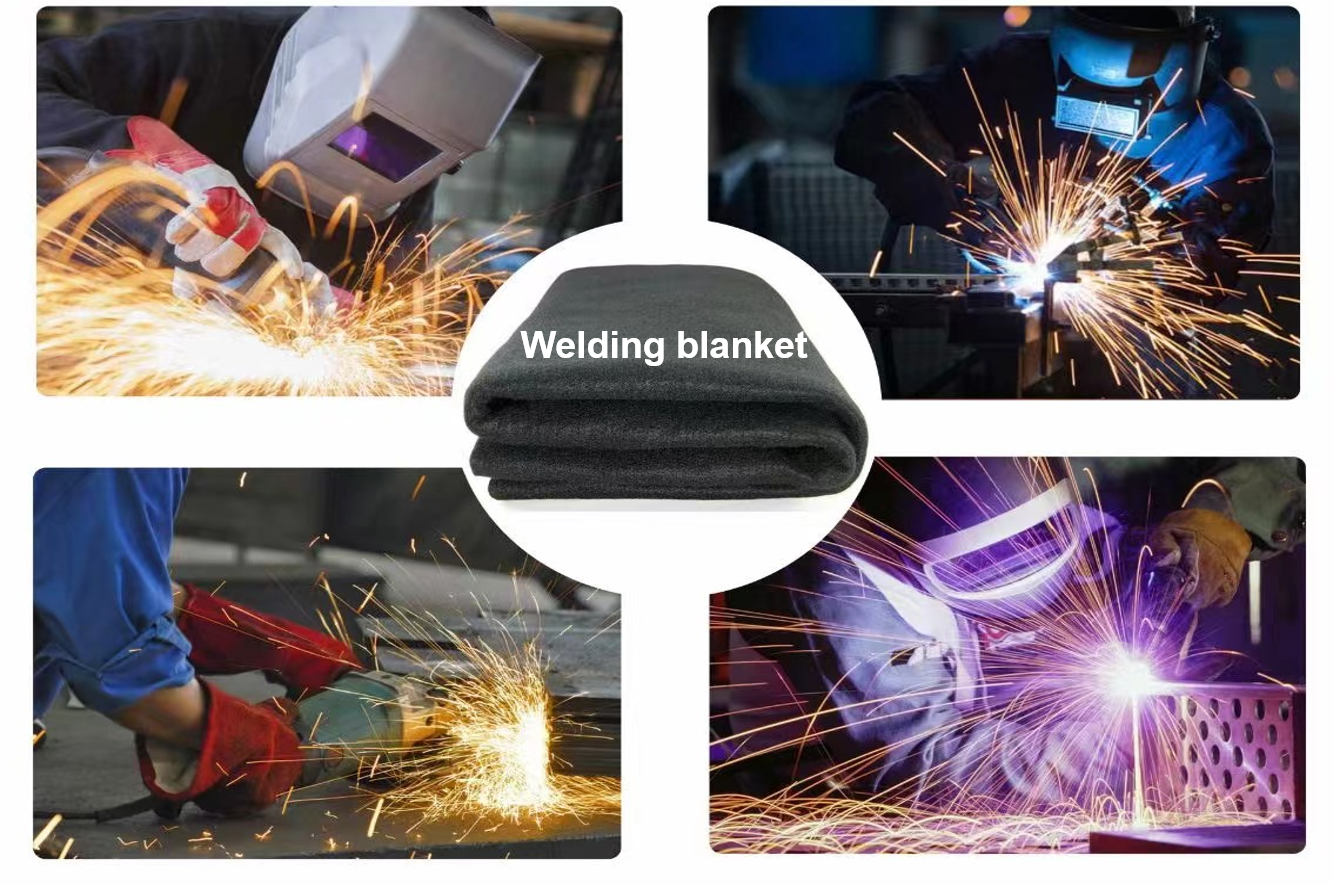

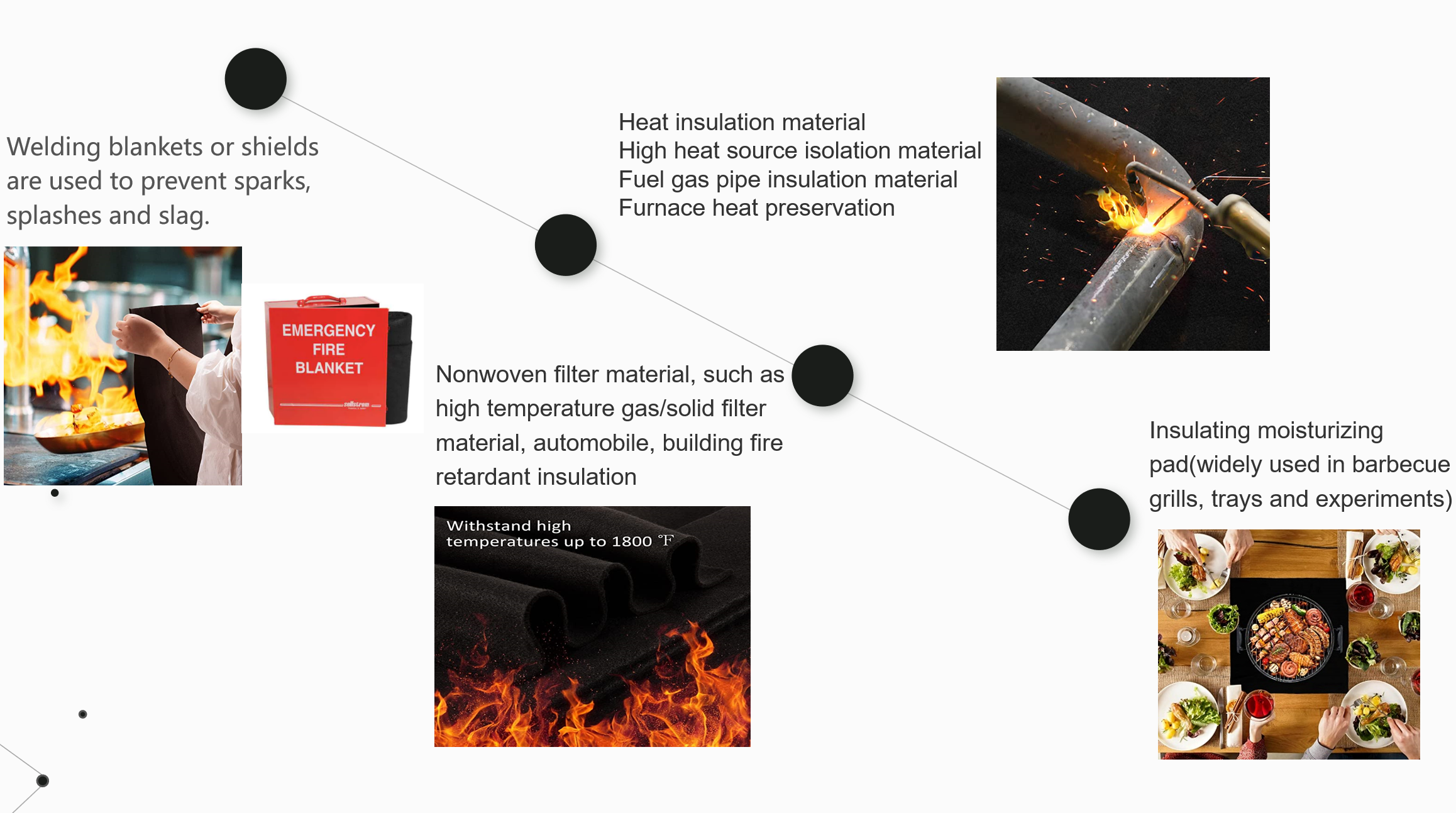

oxidized felt applications

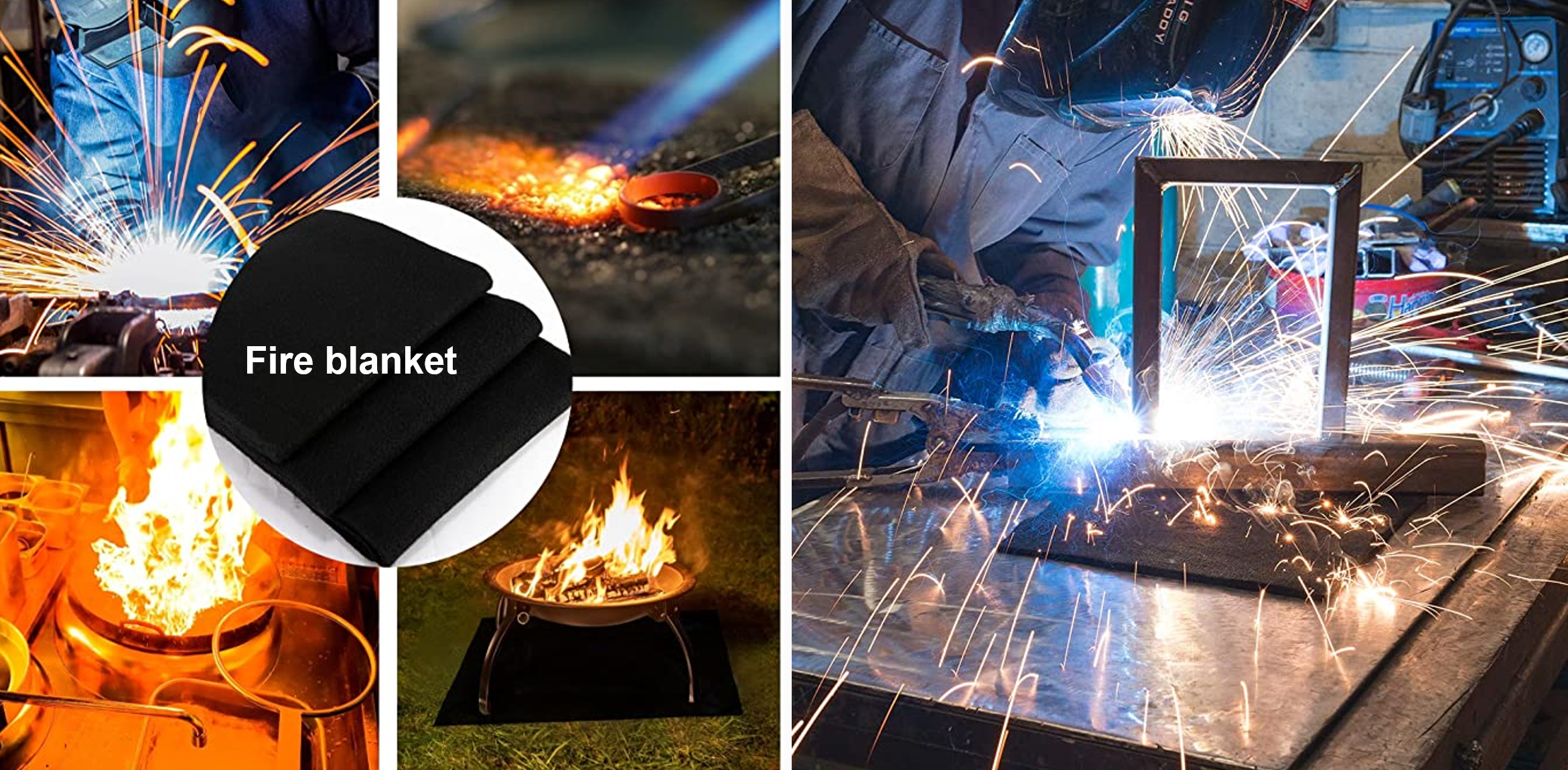

oxidized felt applications

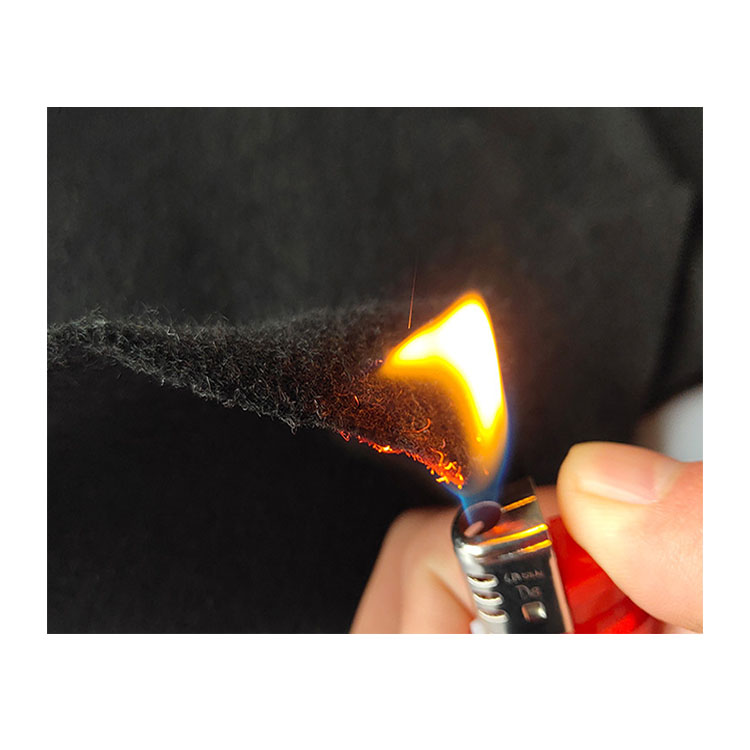

oxidized felt performance
