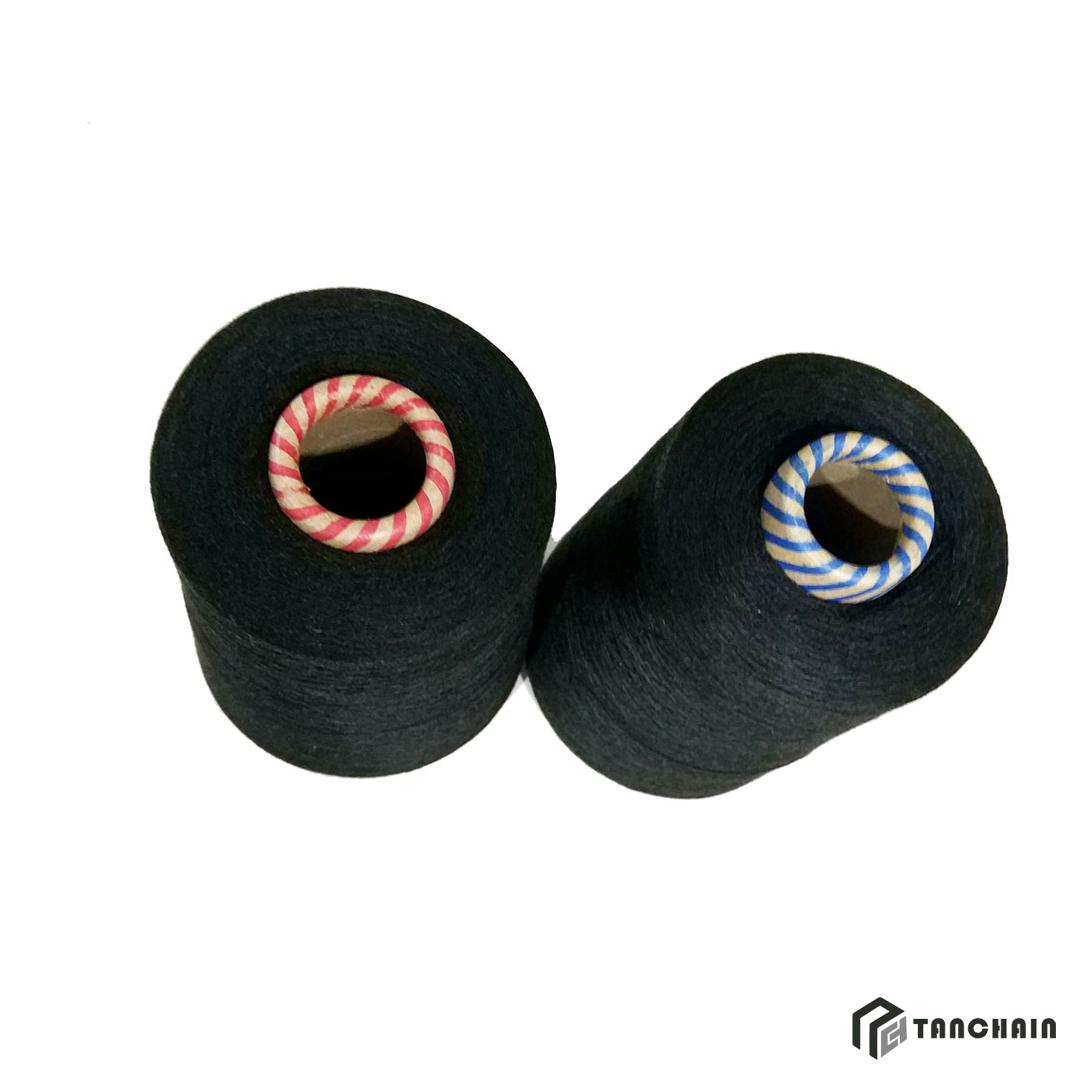

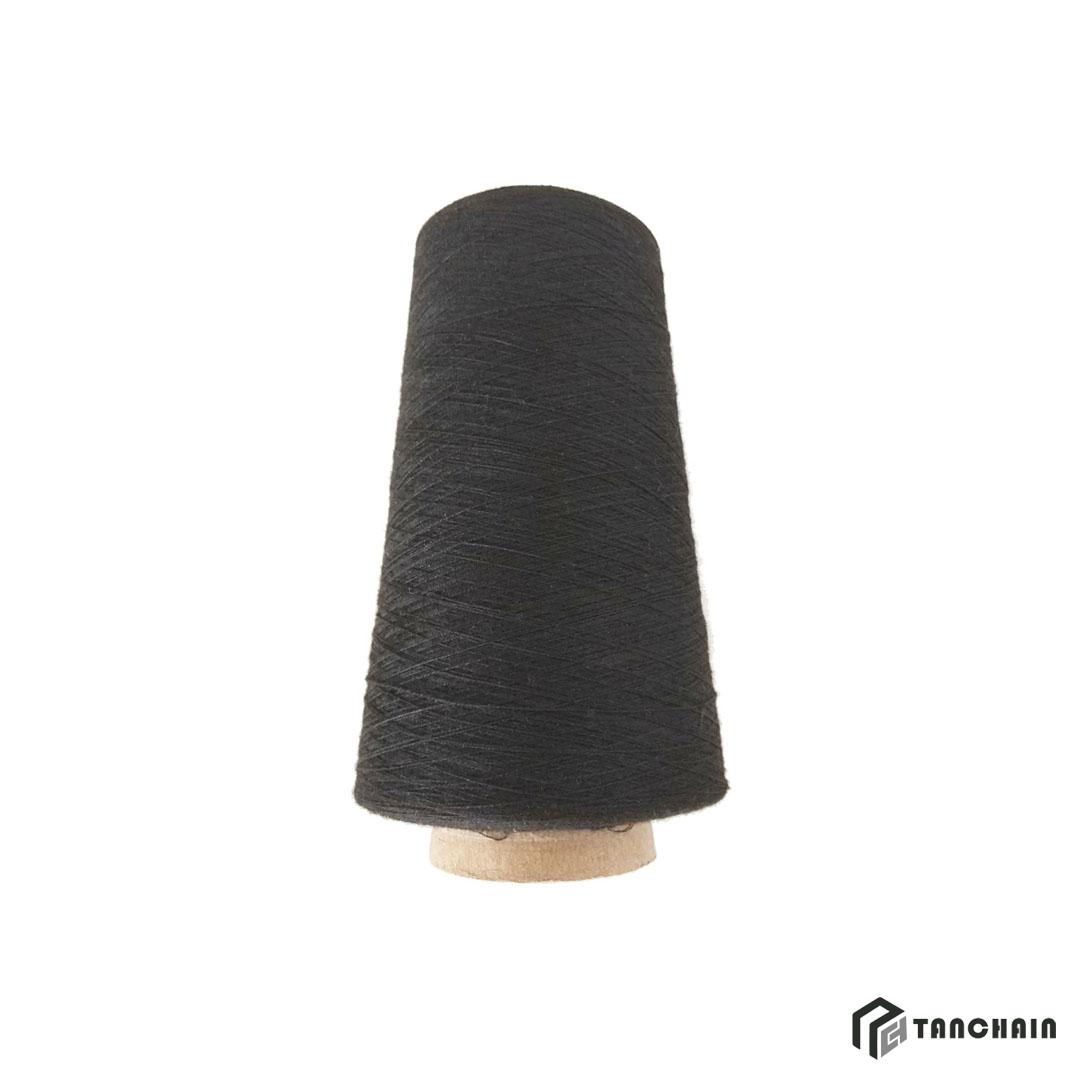

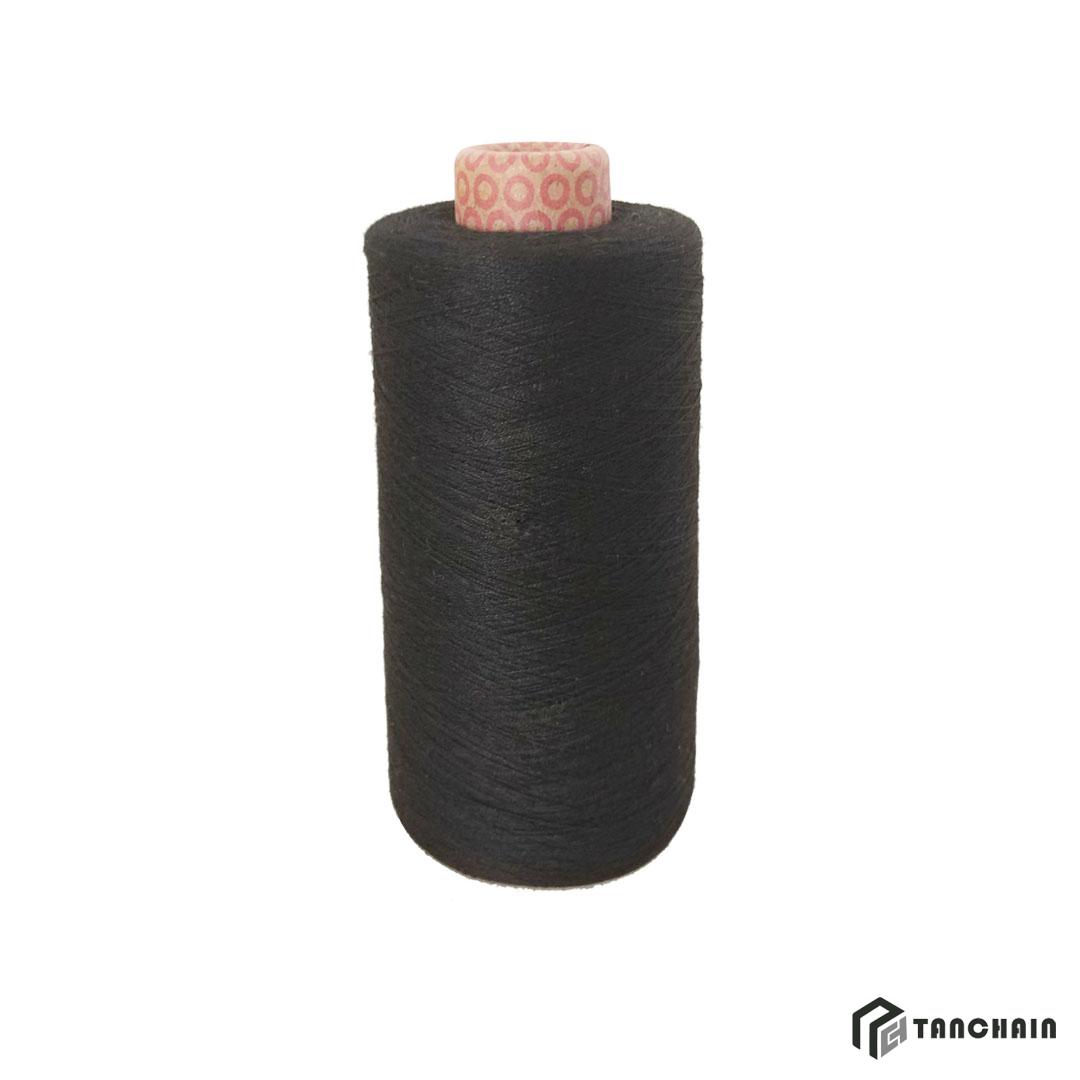

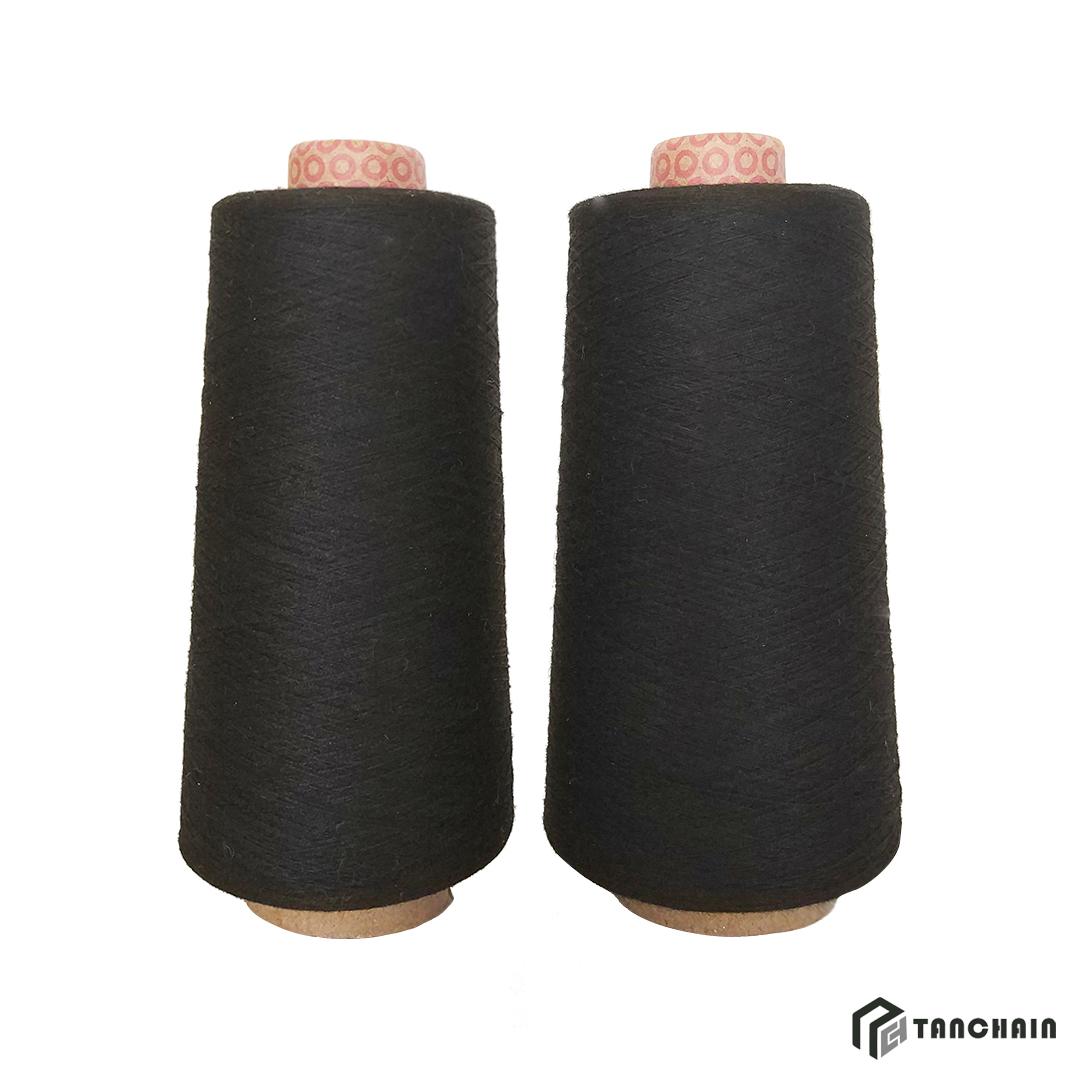

100% Pre-oxidized pan Yarn - SGL Panox spun yarn - Flame retardant
- Code：TC-PY-202
- Material：100% Pre-oxidized pan fiber
- Weight：1kg/cone
- Function：High Temperature Resistant, Flame Retardant, Fire-Proof
- Color：Black
- Weave：Gassed
- Count：20S/2
SEND INQUIRY
Product Properties
Excellent flame retardant properties, this yarn made from 100% panox, has very good flame retardance property, the limited oxygen index is more than 45%, self-extinguishing
No melt, no drip properties, flame resistant with self-extinguish nature and non-melt drip characteristic.
Excellent high temperature resistance, can be used continuously in a very wide temperature range from -196°C to 300 °C, it has no decomposing or melting at 600 °C.
High strength, no difference in tensile strength when wet or dry
Chemical resistance, very good acid and alkali resistant
Material: |
100% panox yarn | Yarn Count: | 20S2 |
| Pattern: | Dyed | Weight : | 1kg/cone, 4000 meters/cone |
| Yarn Type: |
Spun | CV Strength: | 4.27% |
| Breaking Strength: | 4.3CN/TEX | Breaking Elongation%: | 13.59% |
| Breaking Strength(cN): | 431 | Breaking Elongation: | 67.95mm |
Material: |
100% panox yarn |
| Pattern: | Dyed |
| Yarn Type: |
Spun |
| Breaking Strength: | 4.3CN/TEX |
| Breaking Strength(cN): | 431 |
| Yarn Count: | 20S2 |
| Weight : | 1kg/cone, 4000 meters/cone |
| CV Strength: | 4.27% |
| Breaking Elongation%: | 13.59% |
| Breaking Elongation: | 67.95mm |
Product Description
Pre-oxidized Pan Yarn was made by Pre-Oxidized Pan which is an oxidized polyacrylonitrile (PAN) fiber which does not burn, melt, soften or drip. As an internationally recognized industry standard for non-flammable textile fibers, Pre-Oxidized Pan can be used in many different fields as an effective protection against fire and heat. The LOI value of Pre-Oxidized Pan is above 45%, is considerably higher than that of other fibers and corresponds to combustion class S-a according to DIN 66083.
Pre-oxidized Pan Yarn was made by pre-oxidized Pan fiber with ring spun process. Limit oxygen index is above 45%, with excellent thermal stability, no melting no drip , no softening shrinkage, it has excellent flame retardant, high temperature resistance and heat insulation functions.
We choose the A grade pre-oxidized Pan fiber to produce the preox yarn, such as SGL panox fiber, Zoltek OX fiber.
| Content: | 100% panox yarn |
| Specification : | 20s/2, 1000g/cone, other yarn sizes 36s/3 20s/3, 30s/3, 20s/1, 20s/2 etc. are available and customized thread size is acceptable |
| Color: | Black |
| Use: | Sewing, Cross Stitch, Embroidey,Hand Knitting, Weaving |
| Feature: | Low Shrinkage, High Temperature Resistant, Chemical-Resistant, Abrasion-Resistant, flame retardant |
| MOQ: | 10 kilograms |
| Meet standard : | AATCC/ASTM, EN, ISO, GB, AS |
| Application : | Used for protective clothing, flame retardant curtains, Fire Blanket, Gloves |
