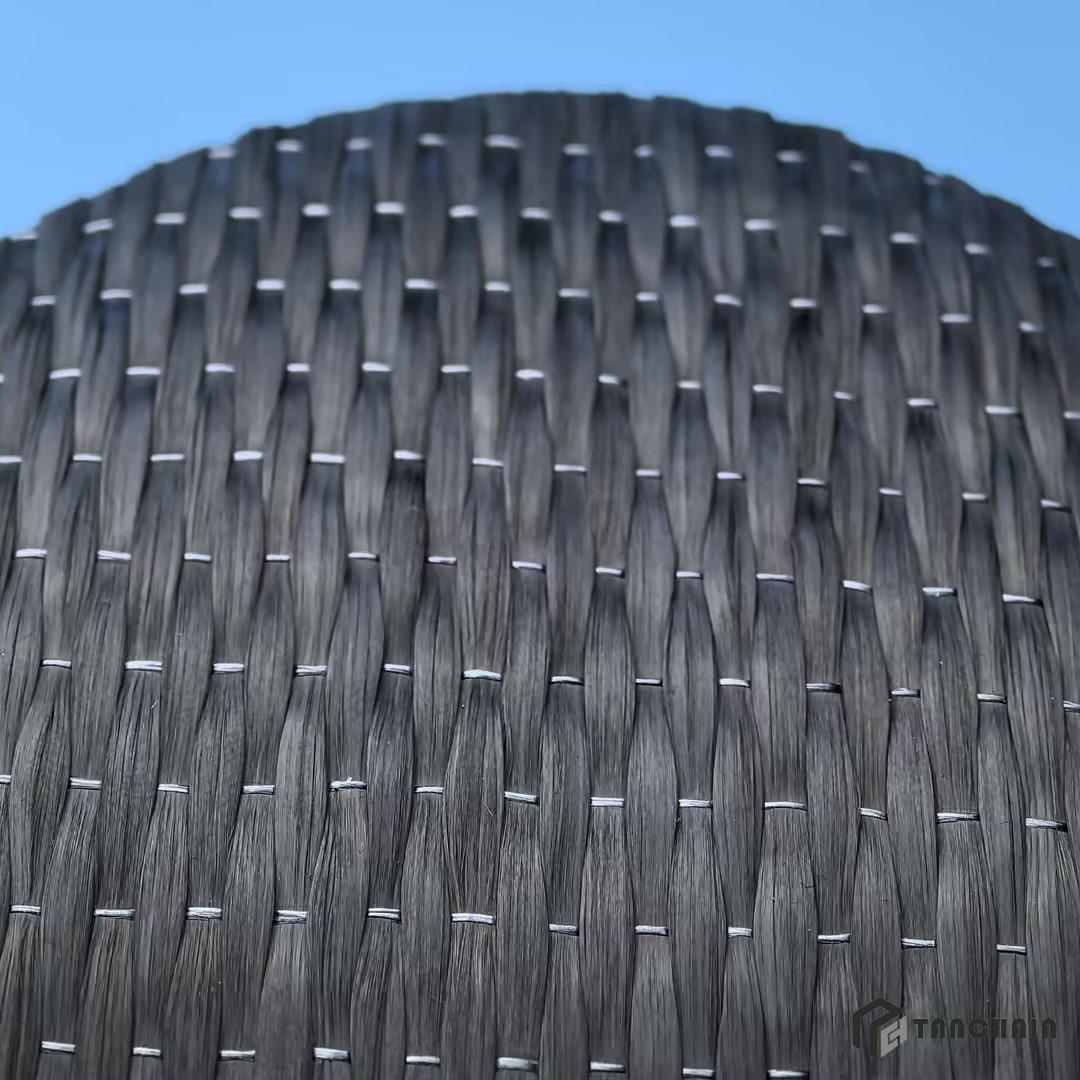

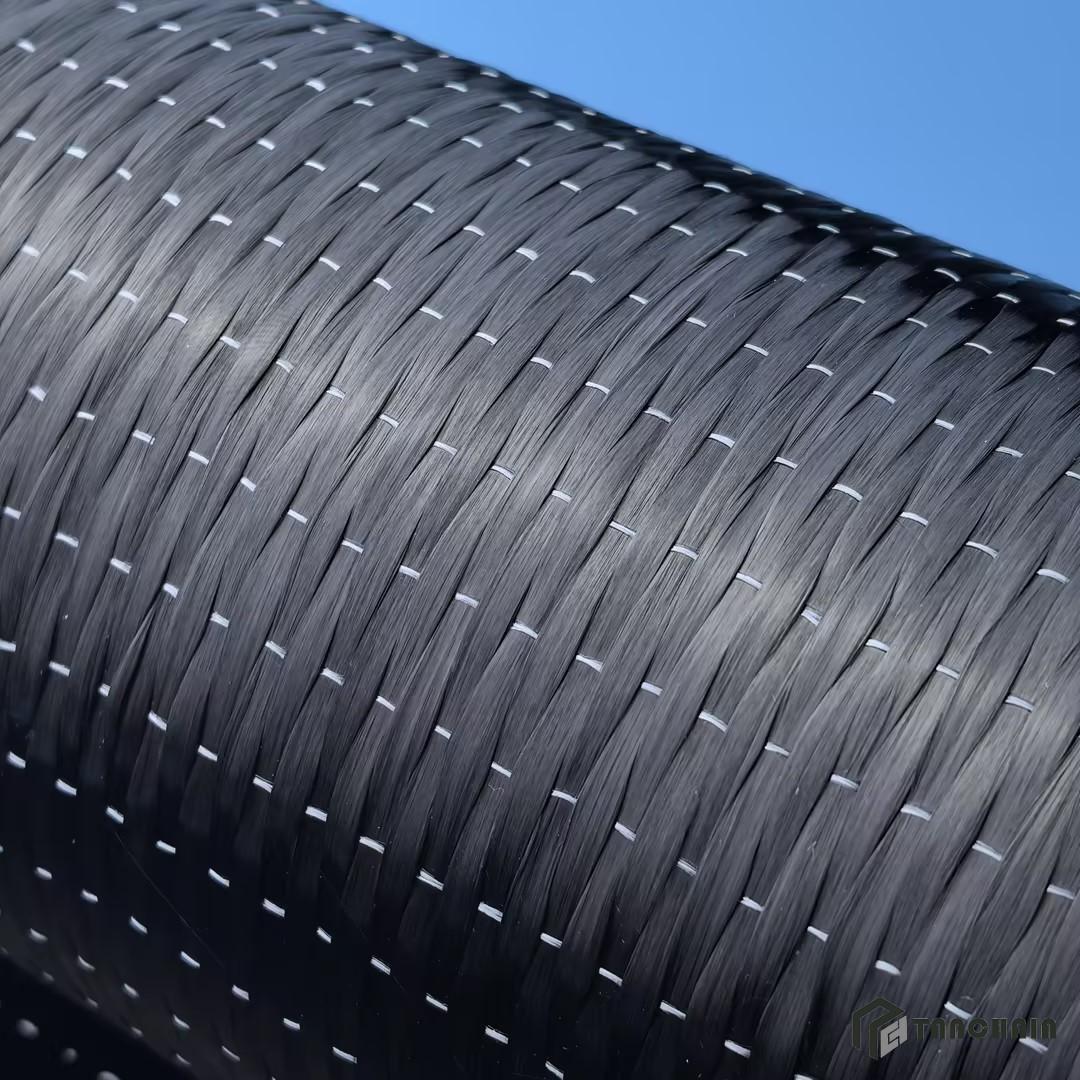

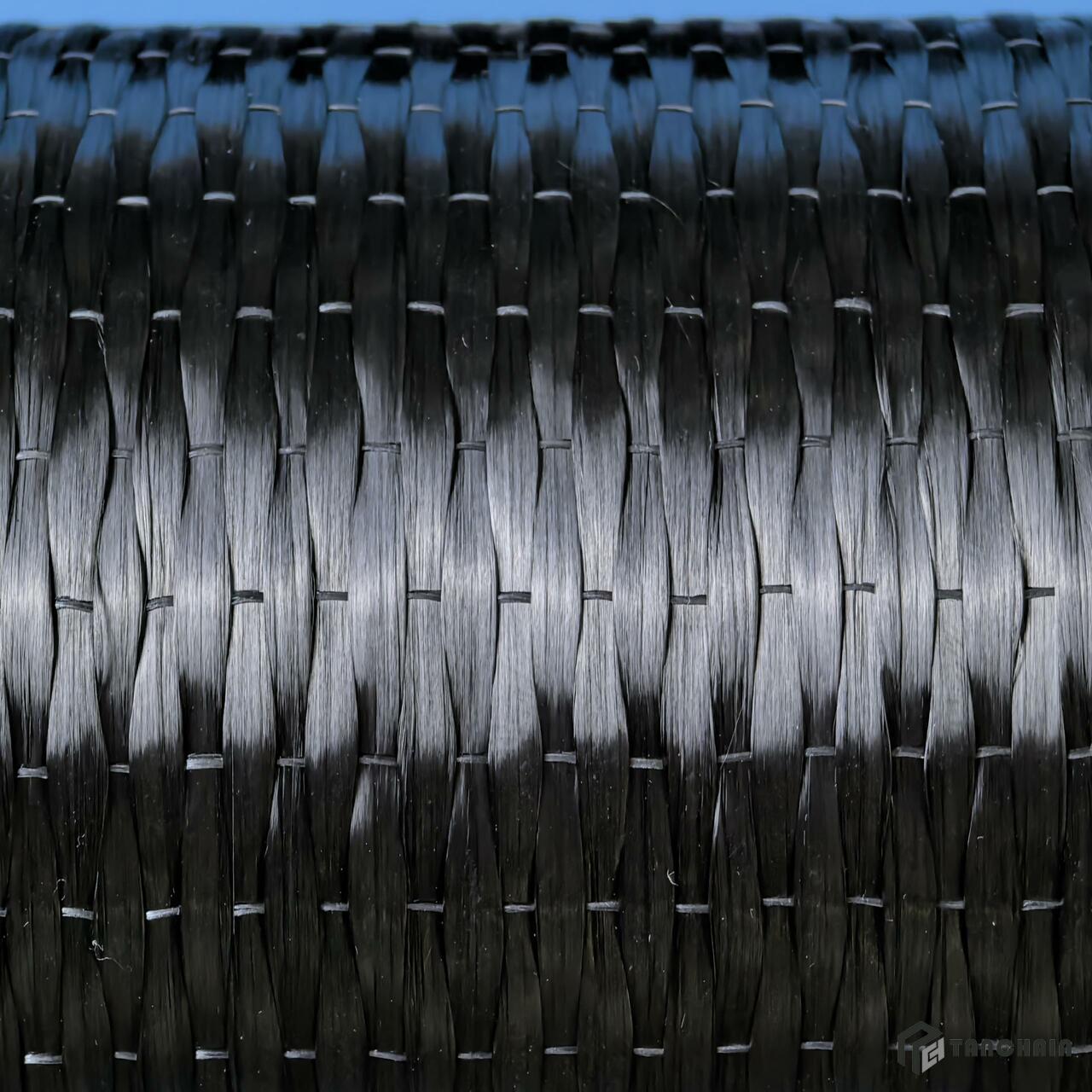

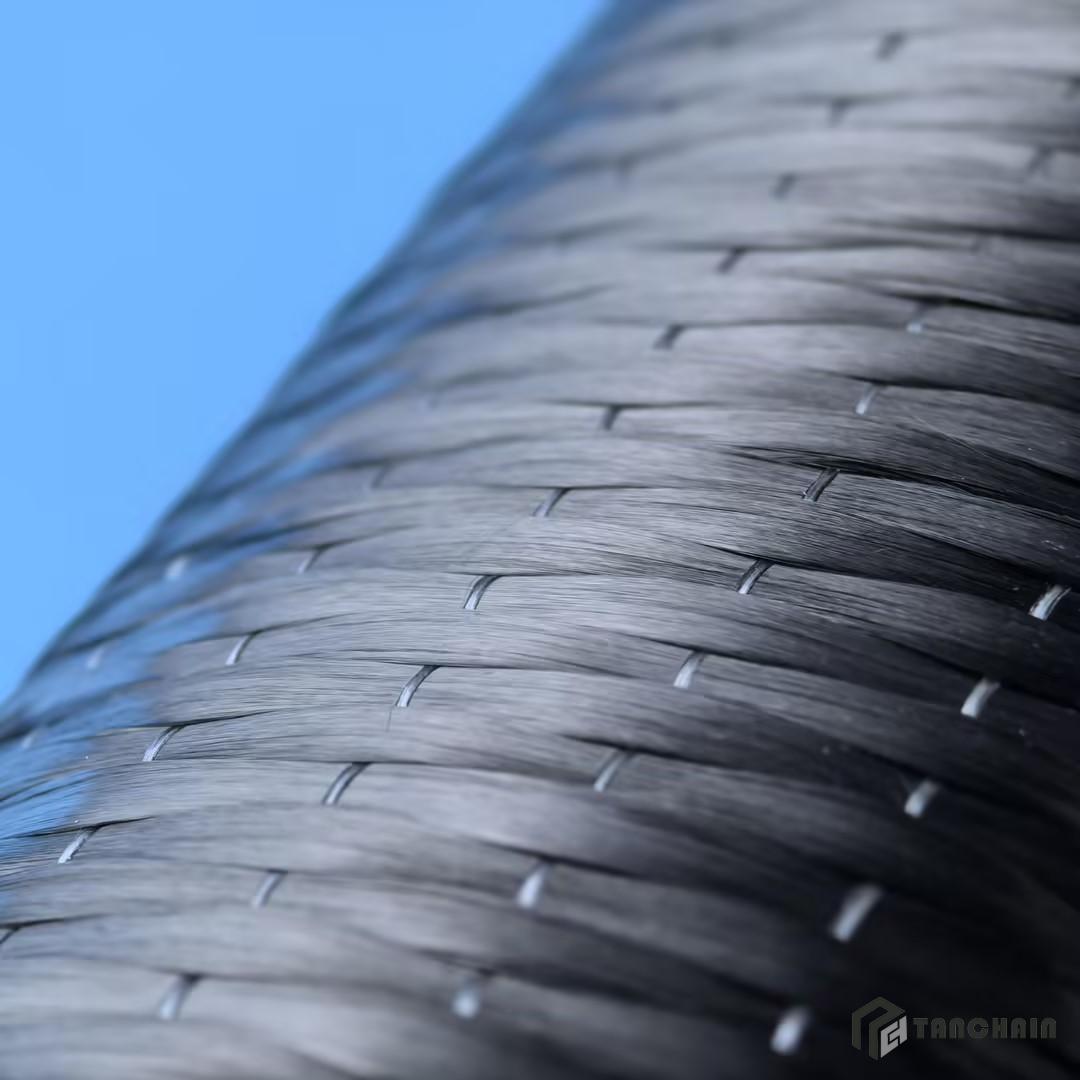

600gsm - Unidirectional carbon fabric - UD - Non-Crimp

Parameters of unidirectional carbon fabric:

This kind of non-Crimp, unidirectional carbon fabric is mainly used for building reinforcement, because most of the time, building reinforcement only requires force in one direction. Because the carbon fibers are not intertwined by each other, unlike two-way fabrics, so the carbon fibers will not be pulled in the other direction. The breaking strength will not loss.

Technical data sheet

Product list of unidirectional carbon fabrics

Product description

600g carbon fiber unidirectional fabric has the following characteristics:

- High strength and high stiffness:

The carbon fiber filaments are arranged in one direction, which makes it extremely strong and stiff in the fiber direction. It can withstand a lot of tensile and compressive forces and is suitable for manufacturing structural parts that require high strength and high stiffness.

- Lightweight:

Although the weight is relatively large, the carbon fiber itself is light. The 600g fabric is still much lighter than traditional metal materials, which can effectively reduce the weight of the structure. It is widely used in aerospace, automotive industry and other fields, and helps to improve the fuel efficiency and handling performance of transportation vehicles.

- Corrosion and fatigue resistance:

It has excellent corrosion resistance and fatigue resistance, and can work stably for a long time in harsh environments, such as in high acid, alkali, salt environment or frequently stressed structures, it can maintain stable performance and reduce maintenance costs.

- Convenient construction:

The construction is relatively simple. With the matching resin and other adhesives, it can form a complete carbon fiber composite material system, which can effectively improve the efficiency of reinforcement and repair work, and can be operated in a small space without the need for large-scale mechanical equipment and turnover materials.

- Good flexibility:

It has good flexibility and is easy to cut. It can wrap complex components of various shapes such as beams, columns, plates, pipes and walls. It has a wide range of applications and can meet the reinforcement needs of different structural shapes.

- Dimensional stability:

The fiber arrangement and distribution are strictly controlled during the manufacturing process to ensure the uniformity and consistency of the fabric, so that it has good dimensional stability under different environmental conditions and is not prone to deformation, warping and other problems.

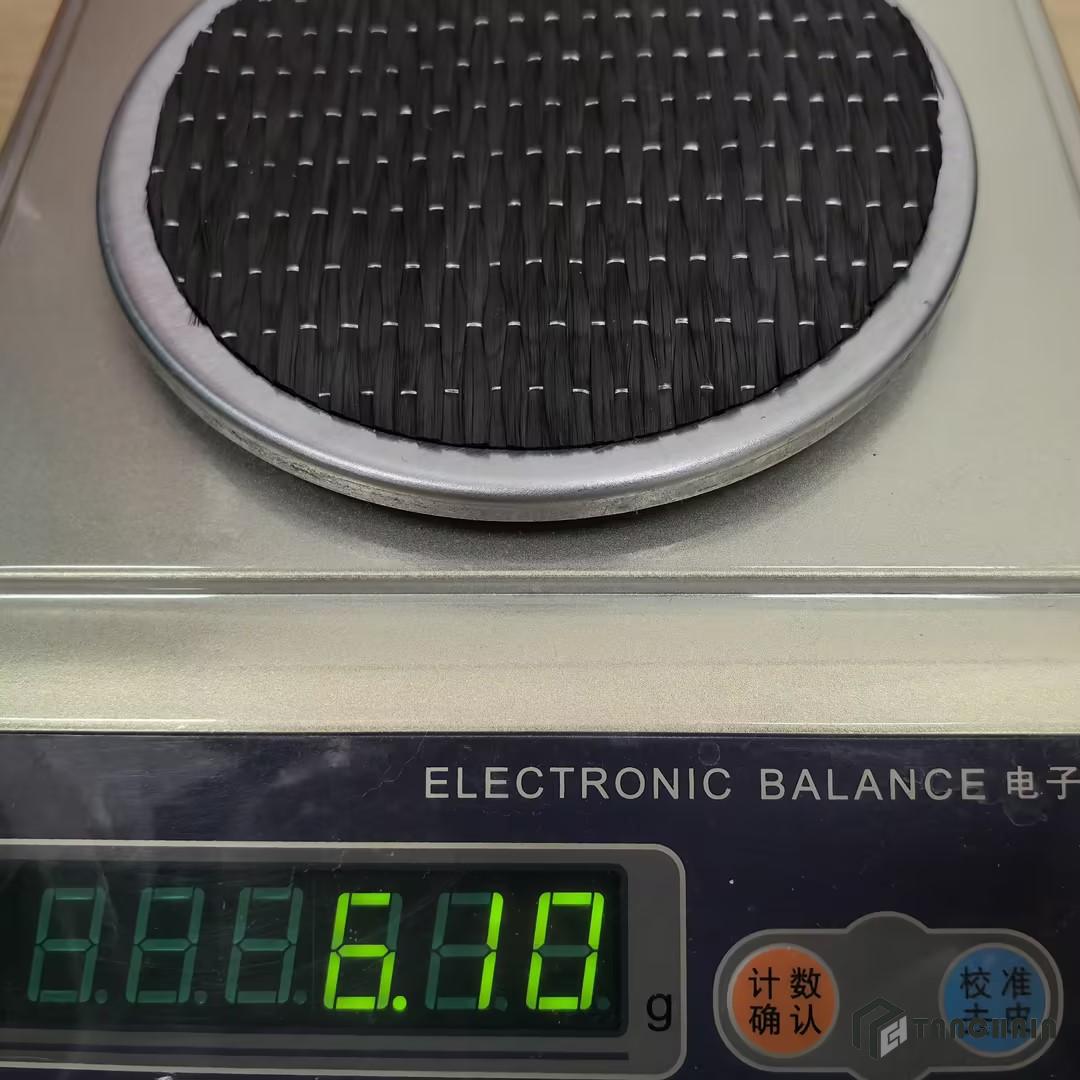

The common specifications of carbon fiber unidirectional fabrics are 200g/㎡ and 300g/㎡. 600g/㎡ carbon fiber unidirectional fabrics are relatively rare, but they also have their application value in the field of structural reinforcement. The following are its specific applications:

Building structure reinforcement

- Used for the reinforcement of beams and columns of old buildings, it can improve their bearing capacity, enhance the integrity and stability of the structure, effectively extend the service life of the building, and because the carbon fiber fabric is light in weight, it will not cause excessive additional load to the original structure.

- Pasted on the bottom of the concrete floor, it can inhibit the development of cracks, enhance the bending and shear resistance of the floor, and improve its bearing capacity. It is suitable for situations where the building load increases or the structural function changes.

Bridge engineering reinforcement

- It can be used to reinforce the beams, plates, piers and other structural components of the bridge, enhance their bearing capacity and seismic performance, improve the durability and safety of the bridge, and extend the service life of the bridge. It is particularly suitable for situations where the bridge load limit tonnage increases.

- For some cracked or damaged bridge structures, 600 grams of carbon fiber unidirectional fabric can repair and reinforce them, restore or improve the strength and stiffness of the structure, and ensure the normal use of the bridge.

Industrial building reinforcement

- In industrial plants, it can reinforce beams, columns and other structures that bear heavy equipment to prevent deformation or damage of the structure due to excessive weight of the equipment, and ensure the safety of industrial production.

- For some industrial buildings in harsh environments, such as chemical plants and seaside factories, the corrosion resistance of carbon fiber unidirectional fabrics can effectively resist high acid, alkali, salt and atmospheric corrosion, provide long-term protection for the structure, and reduce maintenance costs.
