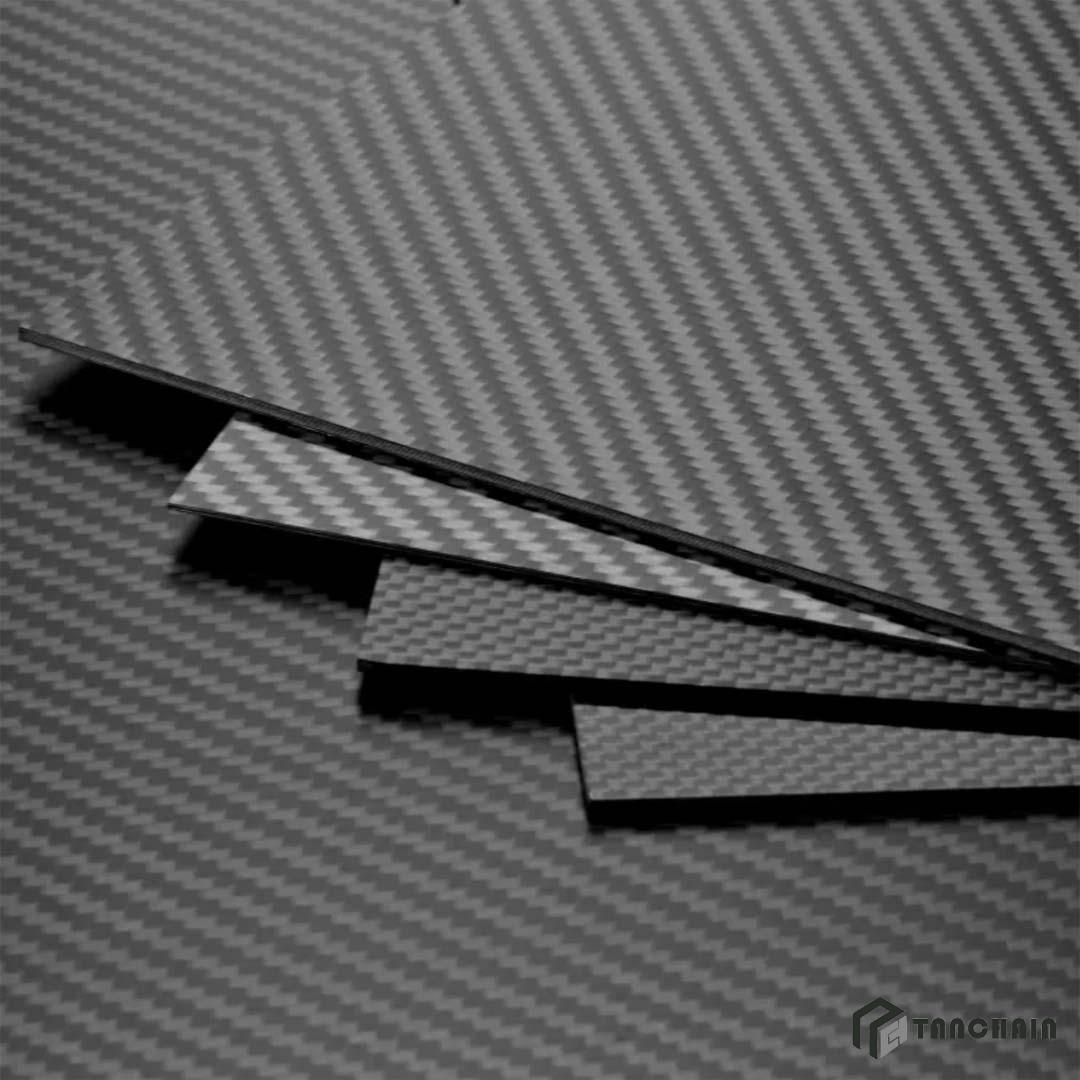

Unleash the Power: Crafting Carbon Fiber Boards with Unidirectional and 3K Carbon Fiber Prepregs



Have you ever marveled at the sleek, high - performance carbon fiber boards that seem to blend strength and lightness in a way that defies imagination? Today, we're going to pull back the curtain and reveal the exciting process of creating these wonders using carbon fiber unidirectional prepregs and 3K carbon fiber prepregs.



The Magic Ingredients: Prepregs



First, let's meet our stars - the carbon fiber prepregs. Think of them as the superheroes in the world of material science. The unidirectional prepreg is like an army of highly - disciplined soldiers, with all its carbon fibers lined up neatly in one direction. This arrangement gives the final product incredible strength along that single axis, making it perfect for applications where you need maximum power in a specific orientation.



On the other hand, the 3K carbon fiber prepreg is a bit like a well - organized community. The "3K" refers to the number of individual carbon filaments in each tow (3,000 to be exact). These prepregs offer a balanced combination of strength and flexibility, and their woven structure adds a touch of elegance to the final product.



Step - by - Step Creation



Design Your Dream



Before we start the hands - on work, it's time to let your creativity flow. Just like an architect designing a magnificent building, you need to plan the layout of your carbon fiber board. Consider the intended use of the board. Is it for a high - speed racing car component that needs to withstand intense forces? Or perhaps a stylish and lightweight drone frame? Based on your needs, decide how many layers of prepregs you'll use and the orientation of the fibers.



The Laying - Up Process



Now, it's showtime! For the unidirectional prepregs, carefully place the layers one by one, ensuring that the fibers are aligned precisely in the desired direction. It's like laying down the tracks for a high - speed train; every detail matters.



When working with 3K carbon fiber prepregs, you can create beautiful woven patterns. Picture it as a delicate dance, where each layer is added with grace and precision. You can alternate between different orientations of the 3K prepregs to enhance the overall strength and stability of the board.



Infusing the Resin



Once the prepregs are laid up, it's time to add the resin. The resin is like the life - giving glue that binds the carbon fibers together. In some cases, the prepregs already come pre - impregnated with resin, but if not, we use a process called vacuum infusion.



Attach a vacuum bag over the laid - up prepregs, seal it tightly, and then use a vacuum pump to create a low - pressure environment. As the air is sucked out, the resin is drawn into the prepregs, filling every nook and cranny. It's like a thirsty sponge soaking up water, ensuring that the carbon fibers are fully coated and ready to work together as a unified force.



Curing: The Final Transformation



After the resin has done its job, the board goes into a curing process. This is where the magic truly happens. Depending on the type of resin used, the curing can take place at room temperature or in an oven at an elevated temperature. During curing, the resin hardens, transforming the soft, pliable layers of prepregs into a rock - solid carbon fiber board. It's like a caterpillar emerging from its cocoon as a beautiful butterfly.



The result? A carbon fiber board that's not only incredibly strong but also lightweight. Whether it's used in aerospace, automotive, or sports equipment, this board is a testament to the wonders of modern material engineering. So, if you're ready to embark on a journey of creating something extraordinary, grab your carbon fiber prepregs and let the adventure begin!
