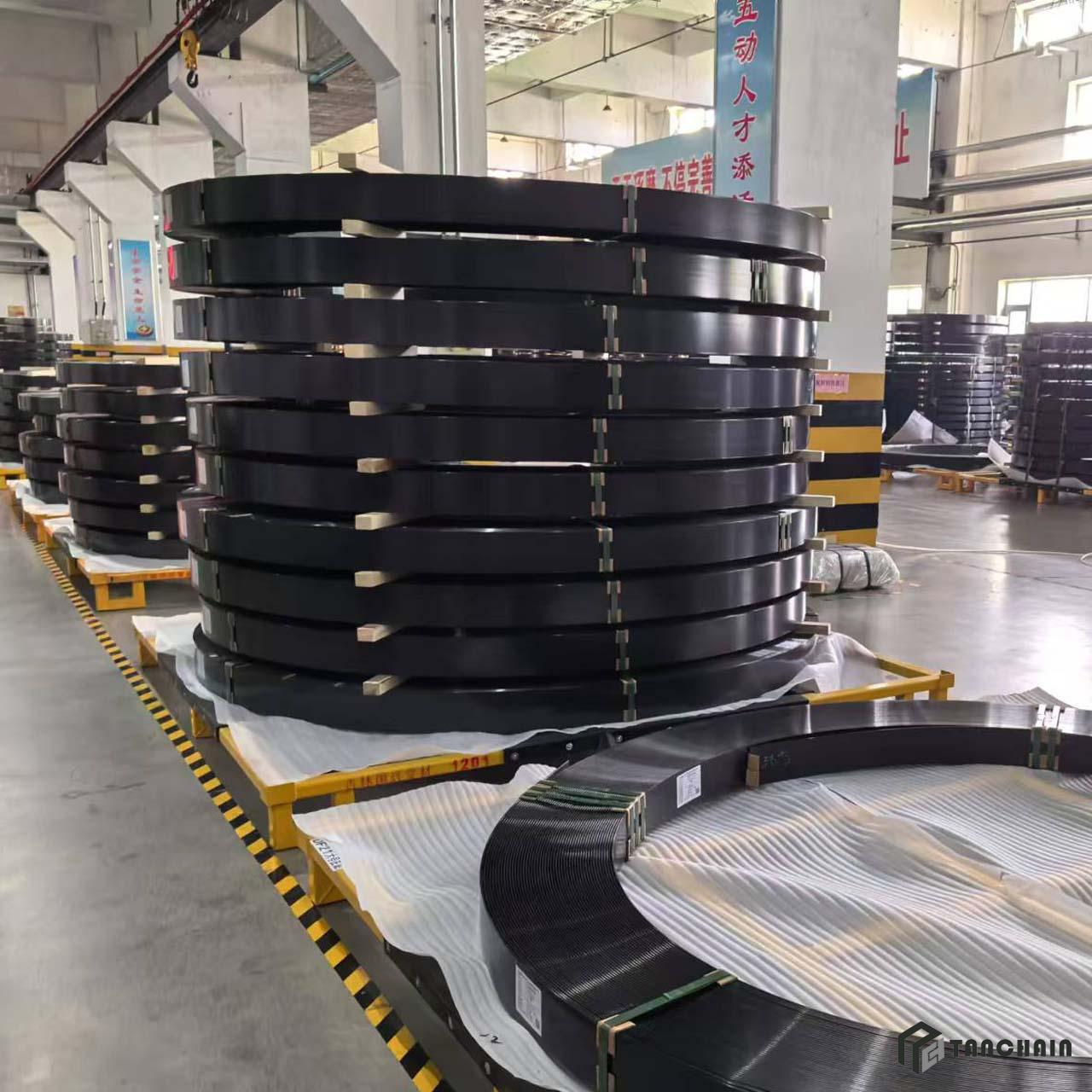

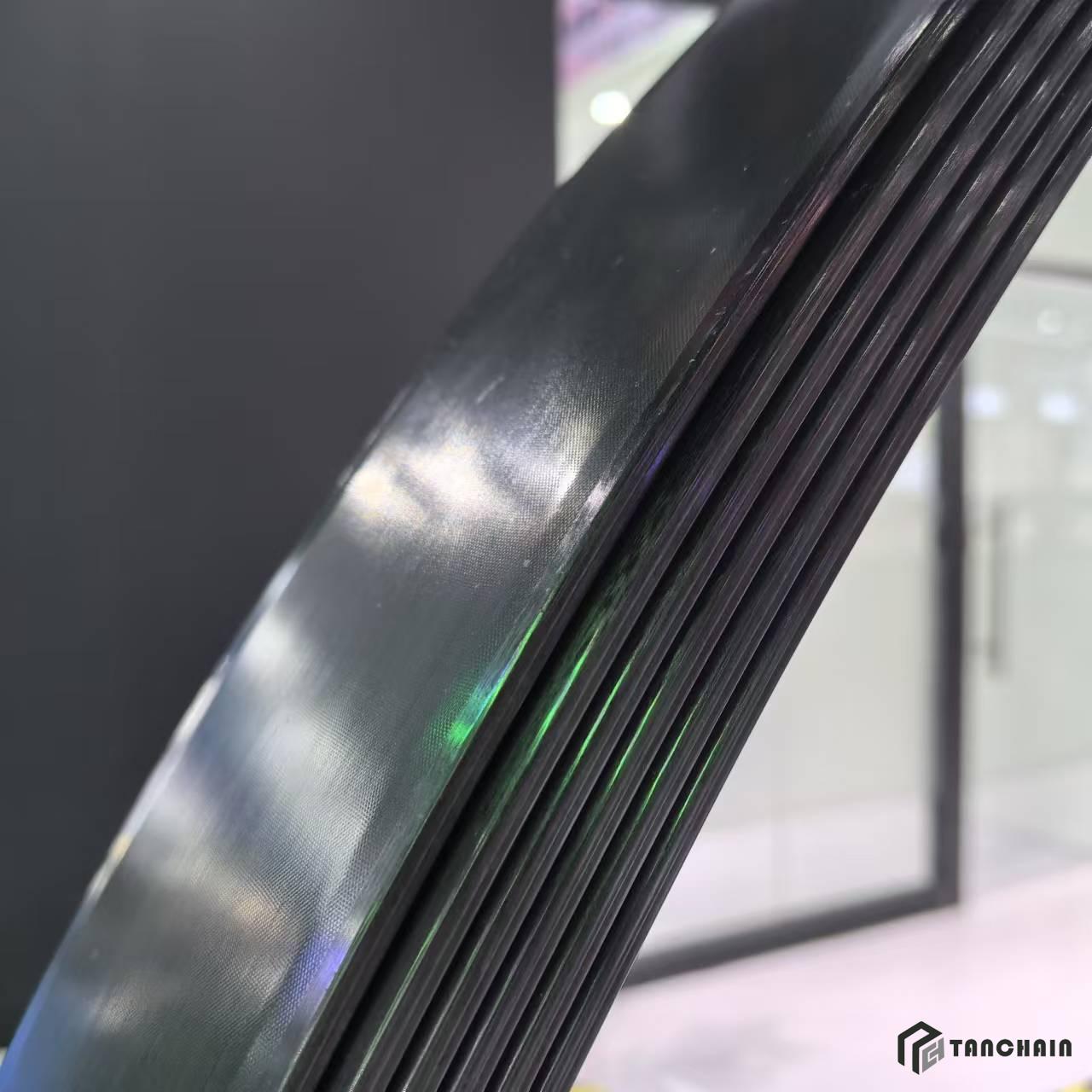

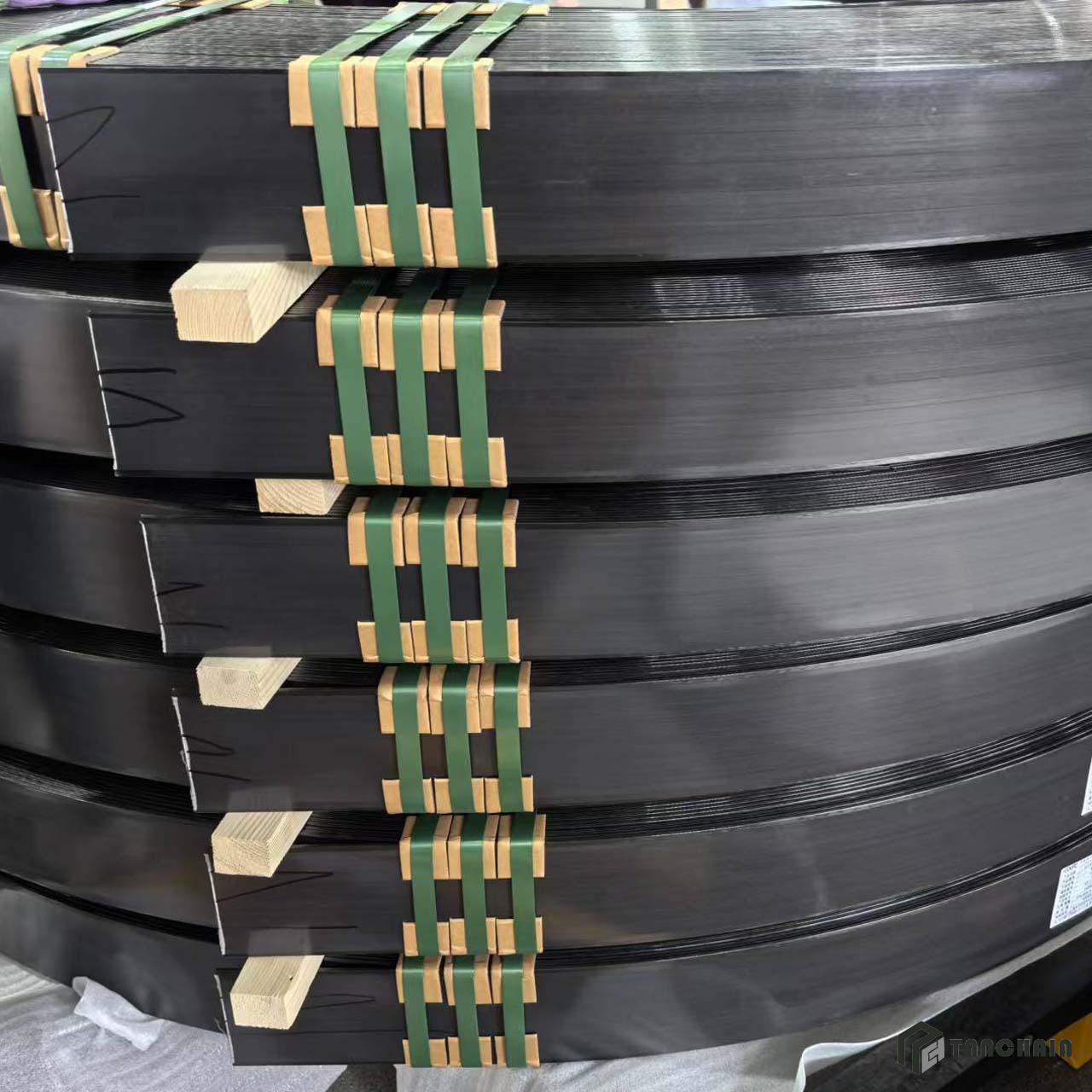

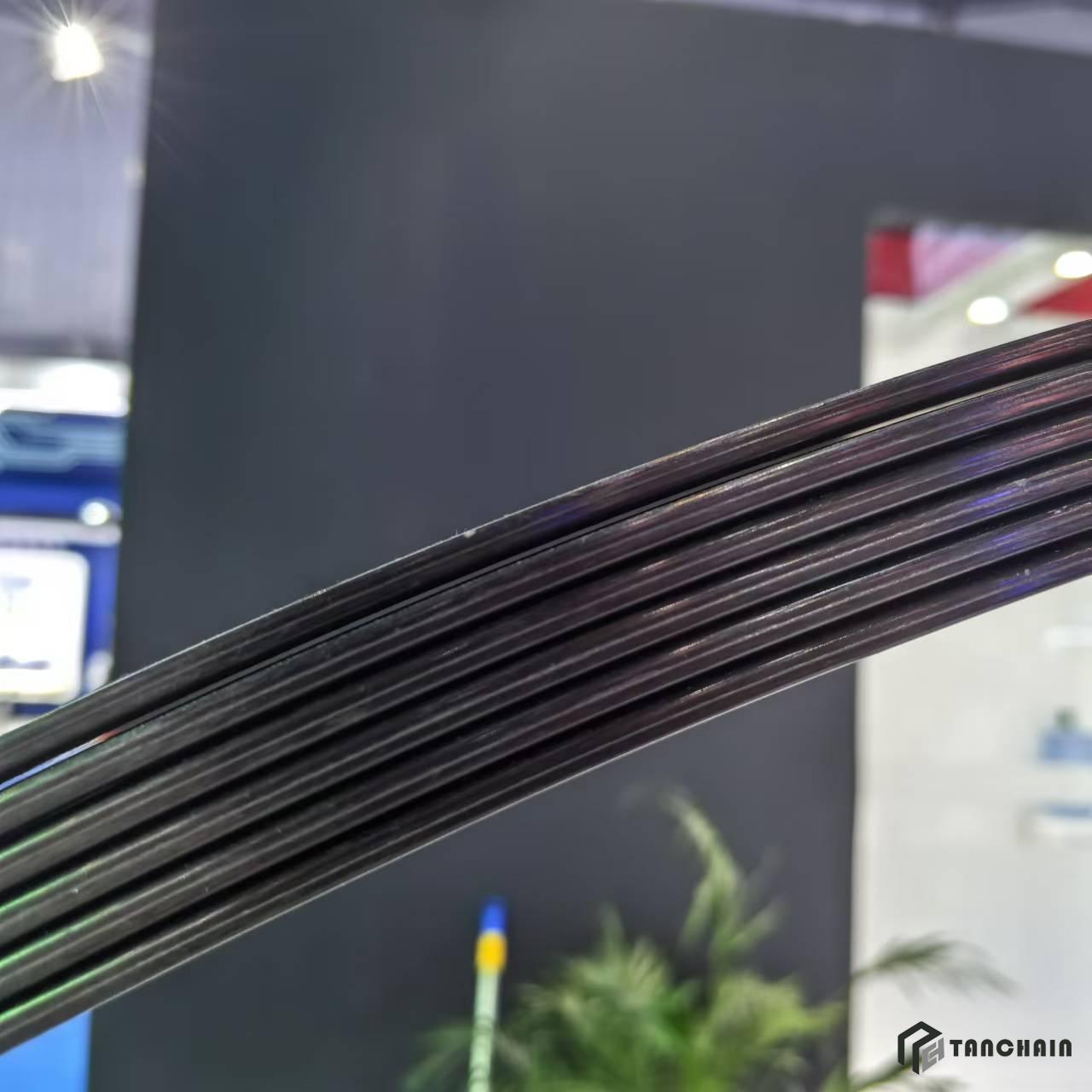

5mm - Carbon Fiber Reinforced Plate - CFRP Laminate - Carbon plates

Parameters of unidirectional carbon plates:

Product list of carbon fiber plates, CFRP Laminate

The applications of 5mm thick carbon fiber pultruded plates in wind power and industrial fields are as follows:

1. Wind power field:

- Wind turbine blade main beam: It is an important application direction. With the development of large-scale wind turbines, the length and weight of blades continue to increase, and higher requirements are placed on the strength and stiffness of materials. Carbon fiber pultruded plates have the characteristics of high modulus, high strength and low density, which can meet the requirements of wind turbine blade main beams for material performance, effectively reduce the weight of blades, and improve the operating efficiency and service life of blades. For example, the main beam structure of large offshore wind turbine blades often uses carbon fiber pultruded plates to enhance the overall performance of blades.

- Other structural components of blades: In addition to the main beam, 5mm thick carbon fiber pultruded plates can also be used for local reinforcement in the blade root, web and other parts of the blade to improve the bearing capacity and fatigue resistance of these parts and adapt to complex wind load conditions.

2. Industrial field:

- Machinery manufacturing: In the manufacture of some mechanical parts with high material performance requirements, 5mm thick carbon fiber pultruded plates can be used to manufacture transmission shafts, gears, bearings and other parts. The high strength and high modulus of carbon fiber can improve the load-bearing capacity and wear resistance of parts, while reducing the weight of parts and reducing the energy consumption of mechanical equipment.

- Aerospace: The structural parts of aerospace equipment such as aircraft and satellites need to have high strength, light weight and high temperature resistance. 5mm thick carbon fiber pultruded sheets can be used to manufacture aircraft wings, fuselage structural parts and satellite brackets and other parts, which can meet the strict requirements of the aerospace field for materials.

- Automobile manufacturing: The automotive industry pursues lightweight to improve fuel economy and performance. 5mm thick carbon fiber pultruded sheets can be used to manufacture automobile body structural parts, chassis parts, etc., without reducing the structural strength, reducing the weight of the car, reducing the energy consumption and exhaust emissions of the car.

- Construction field: It can be used for the reinforcement and transformation of building structures, such as bending and shear reinforcement of concrete beams, plates, columns and other structures, to improve the load-bearing capacity and seismic resistance of building structures.

- Sports equipment: It is used to manufacture high-performance sports equipment, such as bicycles, golf clubs, tennis rackets, etc. The high strength and lightweight characteristics of carbon fiber pultruded plates can improve the performance of sports equipment and make athletes more comfortable in use.

- Pipeline repair: In some pipeline repair projects, 5mm thick carbon fiber pultruded plates can be used as repair materials to enhance the strength and sealing of pipelines and extend the service life of pipelines.

The characteristics of 5mm carbon fiber unidirectional plates mainly include:

1. High strength: Carbon fiber itself has high strength. After being formed by pultrusion process, the arrangement of fibers is more regular, which makes its tensile strength in unidirectional direction higher and can withstand larger loads.

2. High modulus: Modulus is an indicator of the material's ability to resist deformation. 5mm carbon fiber unidirectional plates have a high modulus, good rigidity, are not easy to deform, and can maintain the stability of the structure.

3. Lightweight: The density of carbon fiber is much smaller than that of steel. 5mm thick carbon fiber unidirectional plates are light in weight, easy to carry and install, and have great advantages in application scenarios with strict weight requirements.

4. Good corrosion resistance: Carbon fiber has excellent corrosion resistance, can be used for a long time in harsh environmental conditions, is not easily corroded by chemicals, and reduces maintenance costs.

5. Unidirectionality: Its fibers are mainly arranged in one direction, and have excellent performance in this direction, but the performance in the direction perpendicular to the fiber is relatively weak. Therefore, it is necessary to make a reasonable layout according to the specific stress conditions during design and use.

6. Convenient construction: 5mm thick carbon fiber unidirectional board can be cut, drilled and processed according to actual needs. The construction process is relatively simple and can improve work efficiency.
