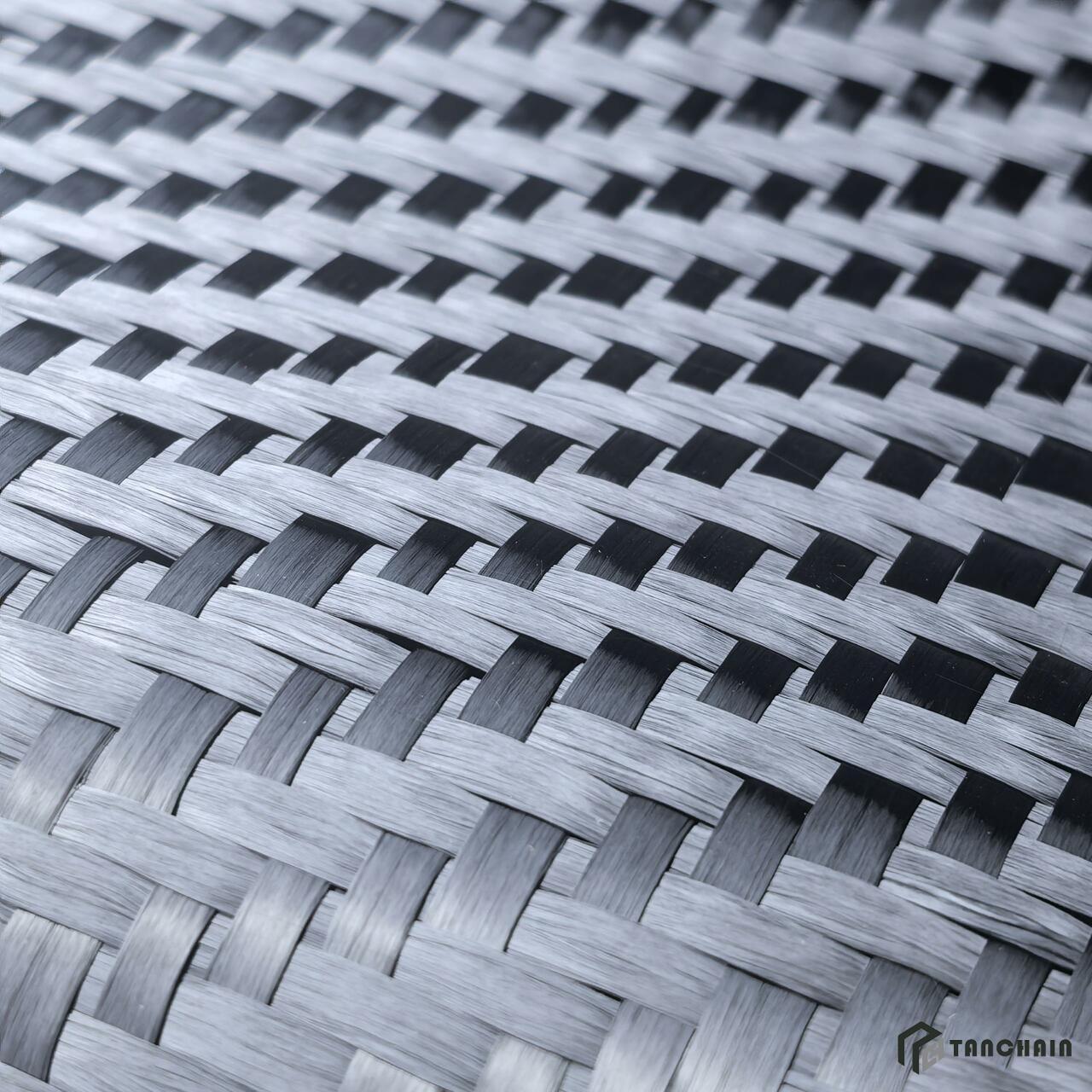

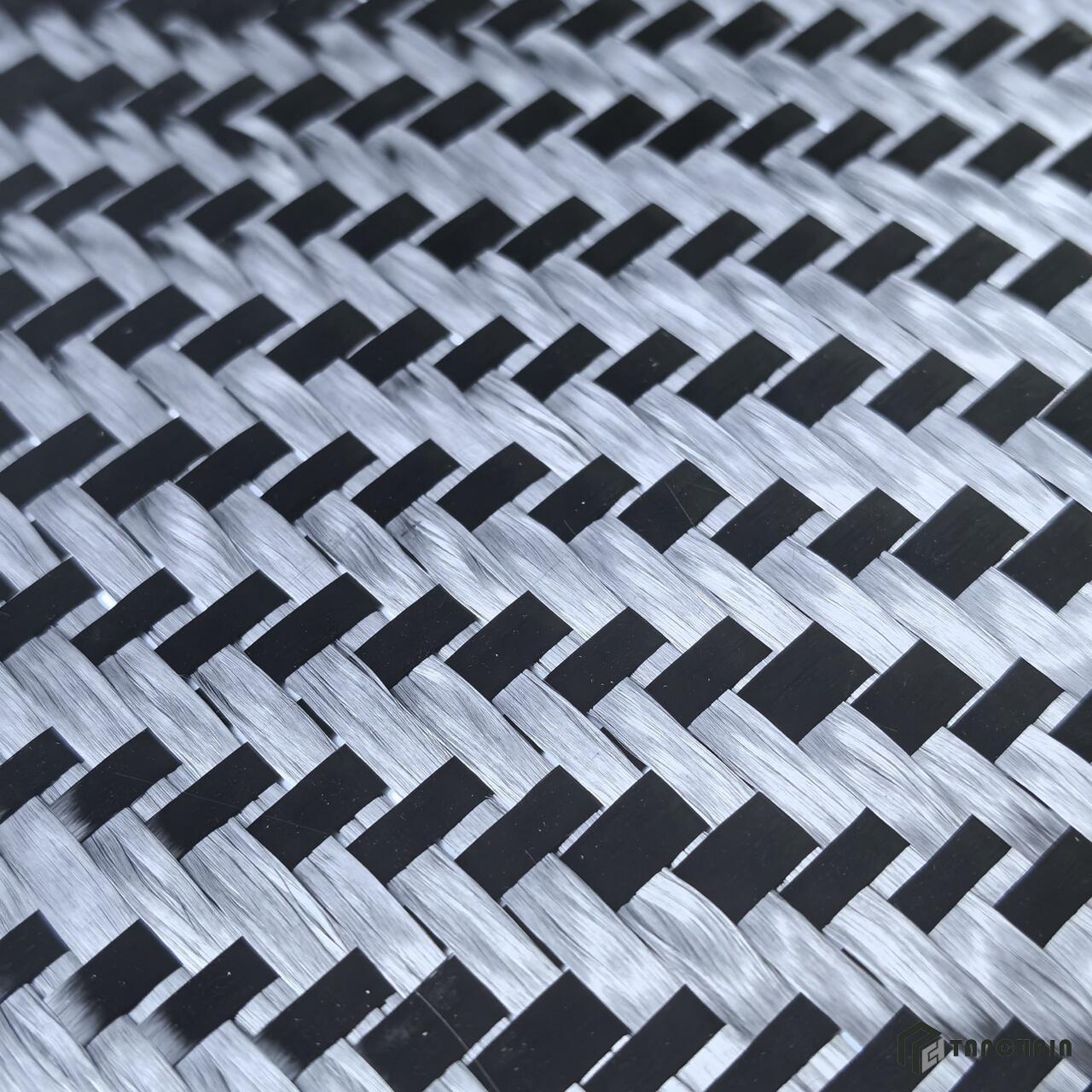

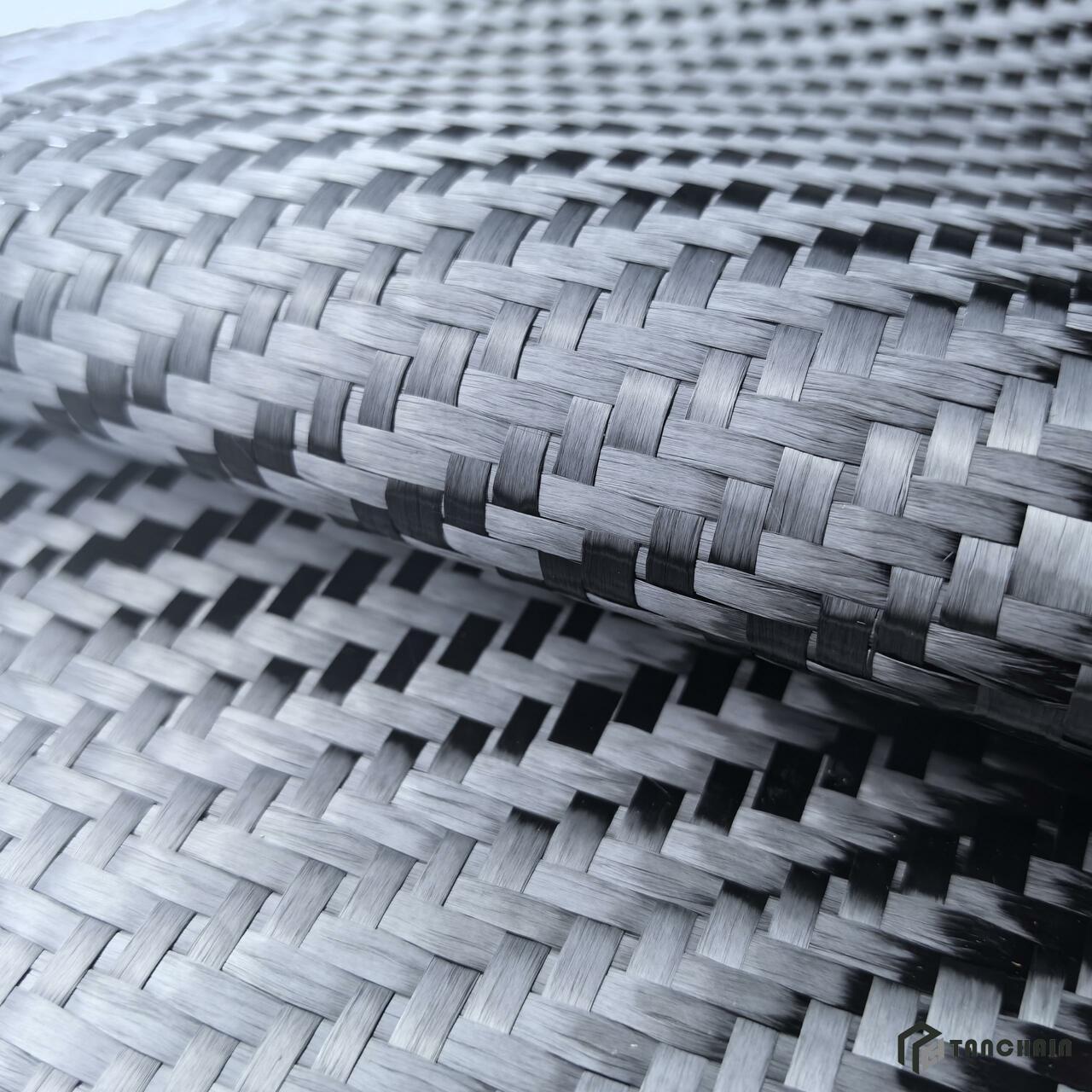

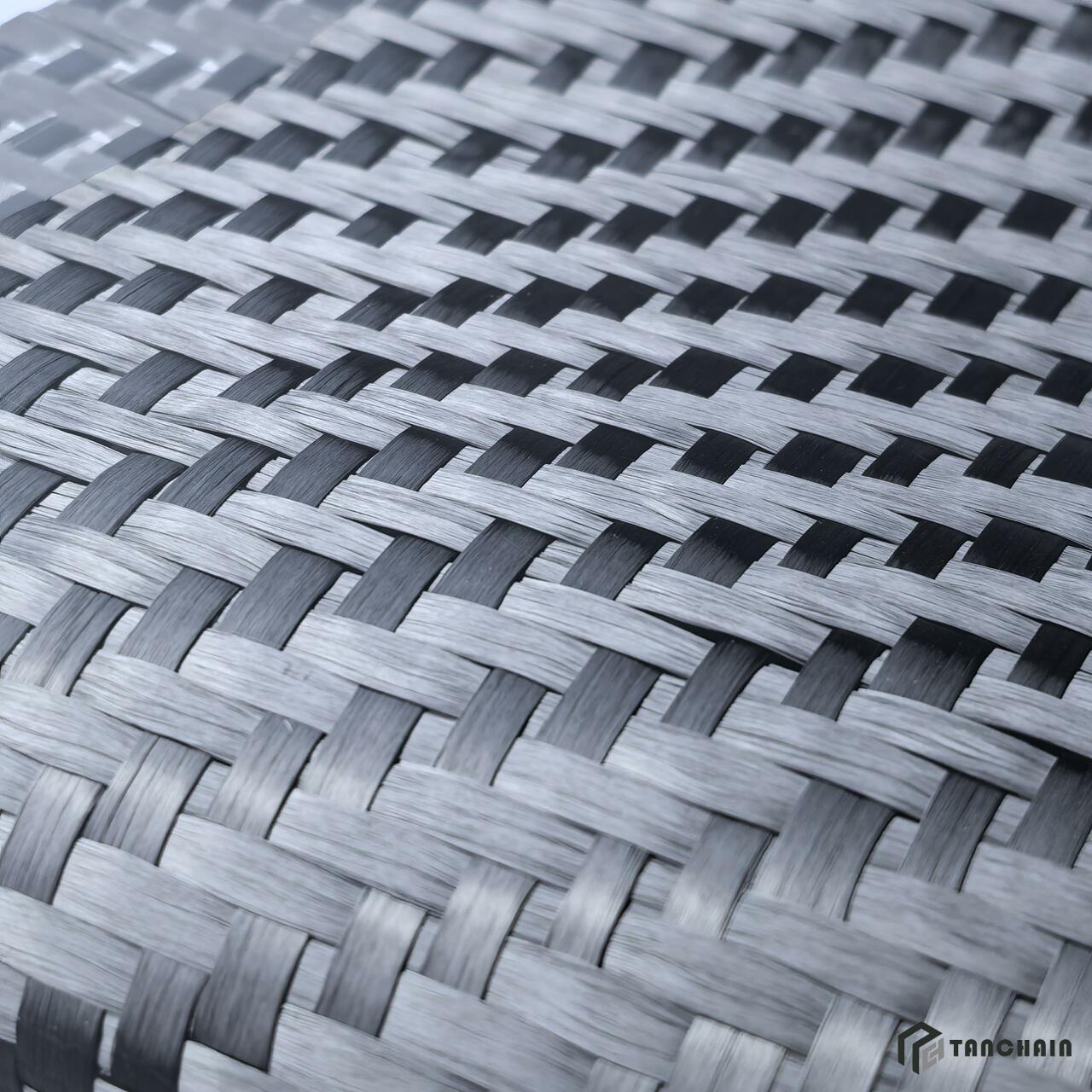

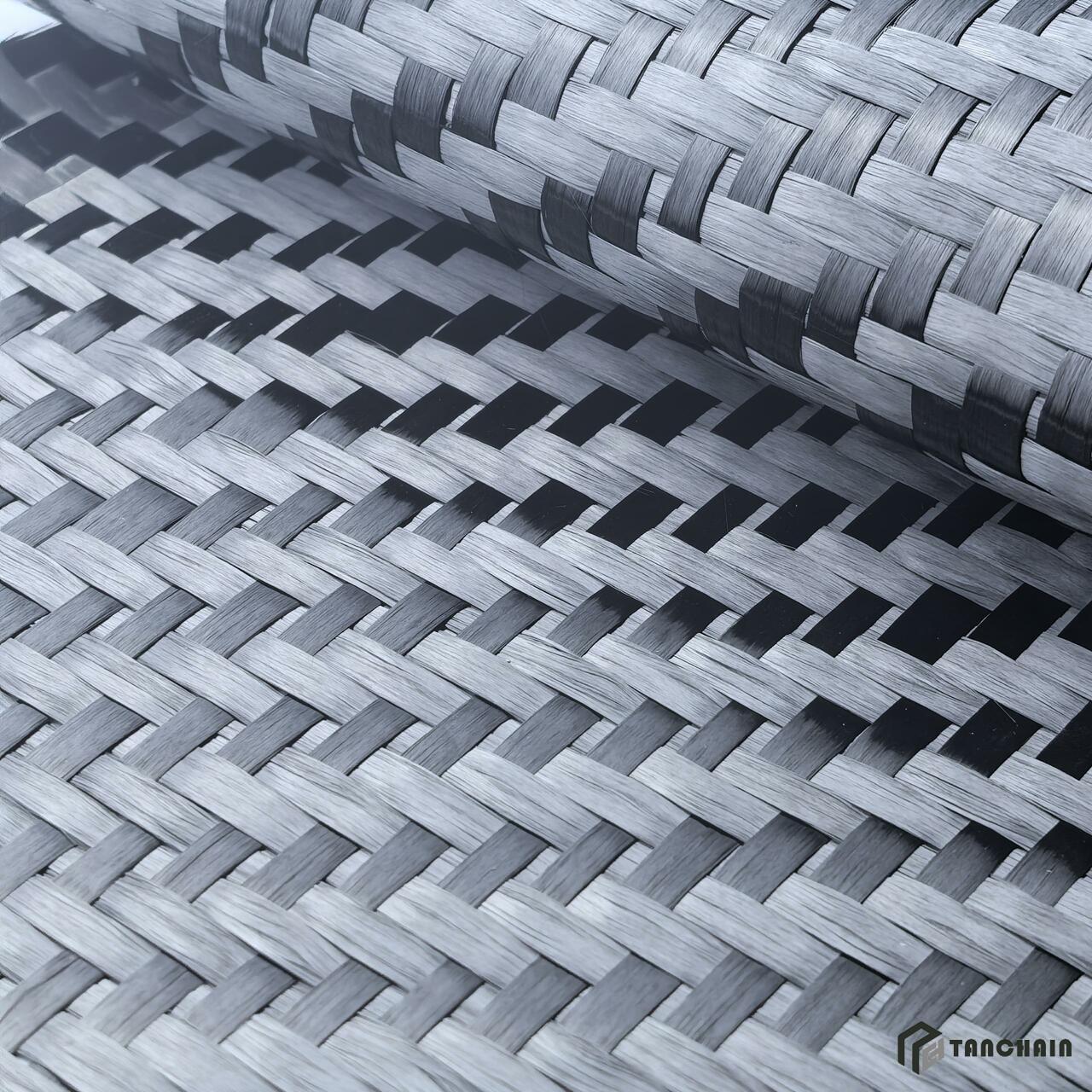

12K - 400gsm - Twill - Carbon Fabric - 12oz

Product Description

400g 12K twill carbon fiber cloth is a high-performance composite material.

Here is some information about it:

1. Basic properties:

- "12K": The "K" here refers to the number of filaments in the carbon fiber tow. 1K means 1000 filaments, and 12K means that there are 12,000 filaments in a single tow of the carbon fiber cloth. Compared with carbon fiber cloth with a smaller K number such as 3K, the grain of 12K is wider.

- "400g": It means that the weight of carbon fiber cloth per square meter is 400g. This weight specification reflects the density and thickness of carbon fiber cloth. The gram weight will affect its strength, flexibility, and applicable scenarios. Generally speaking, the larger the gram weight, the higher the strength, but the flexibility may be relatively reduced.

- "Twill": It means that the weaving grain of carbon fiber cloth is a twill structure. Twill weave makes carbon fiber cloth have better flexibility and tensile resistance in certain directions. Compared with plain carbon fiber cloth, it may have more advantages in applications with curved and complex shapes.

2. Application fields:

- Construction field: It can be used for the reinforcement and repair of building structures, such as the reinforcement of beams, plates, columns, roof trusses and other components, which can greatly improve the bearing capacity and seismic resistance of buildings, especially suitable for the reinforcement and renovation of high-rise buildings and old buildings.

- Transportation field: In transportation facilities such as bridges and railways, it can increase the load weight and durability of the structure, and improve the safety and service life of transportation facilities. For example, it can be used for the reinforcement of bridge cables and the reinforcement of bridge piers.

- Industrial field: It can be used in the manufacture and repair of heavy equipment to enhance the bearing capacity and mechanical properties of equipment. At the same time, due to its light weight, it can reduce the overall weight of the equipment and improve the operating efficiency of the equipment.

- Aerospace field: Although the aerospace field has extremely high requirements for the performance of materials, 12K twill carbon fiber cloth is also used in some non-critical parts or parts with certain cost requirements, such as aircraft interiors, auxiliary structures, etc.

3. Advantages:

- High strength: Carbon fiber has very high strength, which is several times that of metal. It can withstand large tension and pressure to ensure the safety and stability of the structure.

- Lightweight: The density is lighter than that of metal materials, which is very beneficial for reducing the weight of the structure. It has important application value in fields with strict weight requirements, such as aerospace.

- Corrosion resistance: It has good acid and alkali corrosion resistance, can be used for a long time in harsh environments, and reduces maintenance costs.

- Good flexibility: The twill structure makes it flexible and easy to adapt to various complex shapes and structures, which is convenient for construction and installation.

- Good permeability: The chemical properties are stable, the bonding performance with resin and other adhesives is good, and the permeability is strong, which can ensure good bonding between the carbon fiber cloth and the matrix material and improve the reinforcement effect.

The price of 400g 12K twill carbon fiber cloth on the market varies depending on factors such as brand, quality, manufacturer and purchase volume. Generally speaking, the wholesale price may range from tens to hundreds of yuan per square meter. If you have specific purchasing needs, it is recommended to consult us for an accurate quotation.

12k 400g carbon fiber cloth is mainly used for inner filling of carbon fiber products, mainly to increase the strength of the product. At the same time, because the price of 400g carbon fiber cloth is relatively low, the cost of the product can be reduced.
