Product Properties

  1. More strong than usesual carbon fabric because of this carbon fabric is made from Hexel raw materials.

  2. This 3k 200gsm twill carbon fabric mainly for interior use, for which need the higher strength than normal.


Technical Data

Material:

 100% carbon fiber Yarn (warp): 3k carbon fiber
Pattern:  Twill Yarn (weft): 3k carbon fiber
Weight : 200gsm Width: 100cm
Density(warp): 5/10cm Thickness: 0.2mm
Density(weft): 5/10cm Color: Black


Technical Data

Material:

 100% Hexel carbon fiber
Pattern:  Twill
Weight : 200gsm
Density(warp): 5/10cm
Density(weft): 5/10cm
Yarn Count(warp): 3k carbon fiber
Yarn Count(weft): 3k carbon fiber
Width: 100cm
Thickness: 0.2mm
Color Black


Product Description

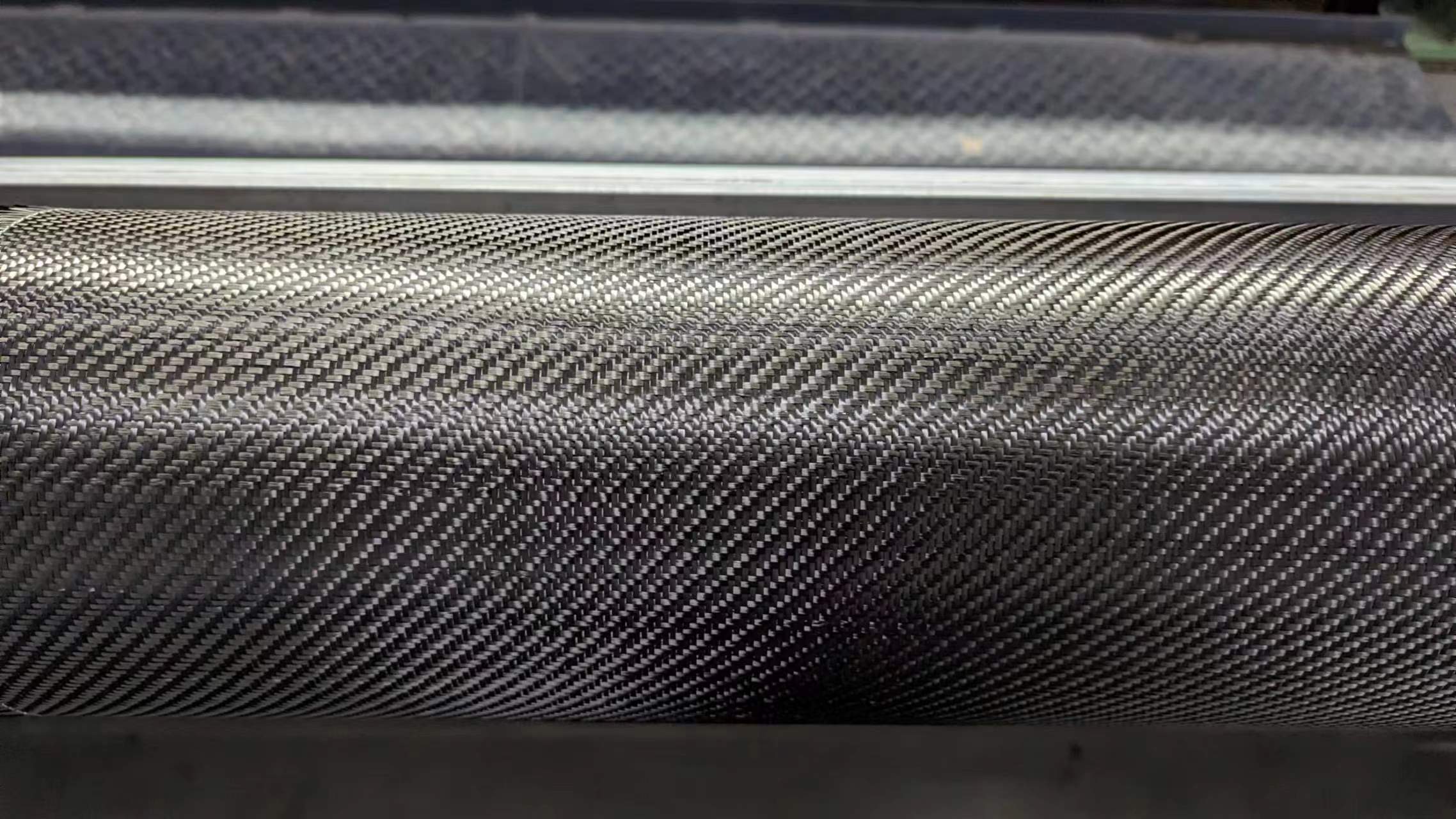

    The 5X5 twill carbon fiber cloth has an oblique pattern that has a certain angle with the arrangement direction of the carbon fiber bundle. There is no carbon fiber bundle in the direction of the pattern. The two carbon fiber bundles are staggered by one weaving position, resulting in the diagonal grain characteristics of the twill carbon fiber cloth. This twill pattern has a strong three-dimensional appearance and is used for car modification products, such as panels, hoods, exhaust pipes and pipes. reinforcement, etc.



Product Details
Content: 100% Hexel carbon fiber
Specification : 3k, 200gsm
Color: Black
width:

100cm
Feature:

High tensile strength, high modulus, strong durability and corrosion resistance, low thermal expansion
MOQ: 100m
Meet standard : AATCC/ASTM, EN, ISO, GB, AS
Application : Used in car, trains, transportation, building reinforcement, sports equipment, aerospace


Similar Series Technical Data

carbon fabric series


carbon fabric product process

carbon fabric category

carbon fabric appliaction

certifications

carbon fabric packagingcompany partner


shipping


Q1:Are you a factory? Where are you located?

A: We are a professional manufacturer with more than 5 years production experience of composite materials, We have two factories, one in Nantong, Jiangsu, China and the other in Bangkok, Thailand.

Q2:What's the MOQ?
A: Usually 100SQM.

Q3:Package & Shipping.
A: Normal package: by carton.

Q4:When can we offer?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price pls call us or send email to us, so that we can reply you with priority.

Q5:How do you charge the sample fees?
A: If you need a samples from our stock, we can provide to you for free, but the free charge should be on your side. If you need a special size, We will charge the sample making fee which will be refund when you place an order.

Q6:What's your delivery time for production?

A: If we have stock , can delivery in 1-7 days, if without stock, need 5-30 days, depend on quantity.


Q7:What is your payment term?

A: Paypal, T/T, L/C AT sight, D/P and Western Union
