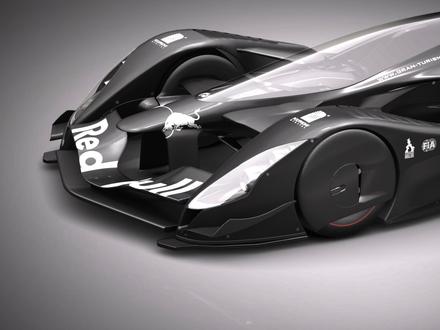

Carbon Fiber and High-Performance Fiber Applications in Motorsport and Racing

Motor racing is where carbon fiber grew up, and where every other industry goes to learn what it can do. A modern Formula One car, a Le Mans prototype and a top-level touring car are built around composite structures because nothing else combines stiffness, strength and lightness in the same way. But motorsport is not only about the million-dollar factory team: club racing, track-day cars, karting, hill climbs and electric single-seaters all rely on the same material family in simpler, more affordable forms. This article maps how carbon fiber and high-performance fibers are used across the racing industry — in monocoques, bodywork, wings, suspension, drivetrain, safety equipment and the pit garage itself — and what those applications mean for buyers and engineers outside the paddock.

1. Why Racing Adopted Carbon Fiber First

Motor racing is a laboratory with a stopwatch attached to it. Every gram removed from a car and every increment of stiffness added to its structure shows up directly in lap time, so the sport has always been willing to pay for better materials before anyone else will. That is why carbon fiber reinforced polymer moved from aerospace research into racing in the 1980s and then, once it was proven there, into road cars, bicycles and aircraft.

1.1 The Stiffness-to-Weight Equation in Lap Time

A racing car is a spring, a wing and a set of contact patches, and its performance depends on how precisely the suspension can control the tyres. A stiffer chassis deforms less under cornering load, which keeps the suspension geometry closer to the values the engineers set and lets the aerodynamic platform run at a more consistent ride height. Carbon fiber laminates deliver roughly four to five times the specific stiffness of steel and significantly more than aluminium, so the same torsional rigidity can be achieved with a fraction of the mass.

That saved mass can then be spent where it helps most: lower and more centralised for a lower centre of gravity, or biased towards the rear for better traction. In a formula where ballast placement and weight distribution are regulated, the ability to build the structure lighter than the rules require is a direct performance advantage.

1.2 Safety Structures and Controlled Crash Energy

Carbon fiber is often described as brittle, and in a simple coupon test that is fair. In a properly designed structure it is something better: predictable. A composite impact attenuator can be engineered to crush progressively at a near-constant load, absorbing energy in a controlled way rather than folding unpredictably like a metal tube. Formula One, Le Mans and IndyCar regulations all depend on this behaviour in the nose, the rear structure and the side impact panels.

The same principle applies further down the pyramid. A club racing seat, a kart steering column guard or a hill climb roll structure can use composite energy absorption to protect a driver at a fraction of the cost of a fully engineered survival cell.

1.3 What Club and Historic Racing Actually Need

Not every customer is a factory team. The larger part of the motorsport market is club racers, track-day enthusiasts, historic car owners and small constructors who need panels, brackets, tubes and repair materials in practical quantities. They value the same properties — light weight, stiffness, damage tolerance — but they need them in standard product forms such as fabric, prepreg, plate, tube and machined profile, with reliable delivery and sensible minimum order quantities.

This is where a supplier who manufactures the full range of fiber, fabric and finished composite forms makes a real difference, because a small team rarely wants to buy from five different vendors for one car.

2. Chassis and Safety Cell Applications

The chassis is the defining composite application in racing, and it is where the industry has invested the most engineering effort.

2.1 Monocoque and Survival Cell Construction

A modern monocoque is a sandwich structure: thin carbon fiber skins bonded to a lightweight core, usually aluminium honeycomb or structural foam. The skins carry the tension and compression loads while the core keeps them apart and carries the shear, which is how a very thin, very stiff shell is produced. Lay-up orientation is tailored to the load paths, with unidirectional fiber placed to carry the primary bending and torsional loads and woven fabric used for handling, impact tolerance and secondary directions.

Because the driver sits inside this structure, the monocoque is also a safety device. Its design is verified by static load tests and by dynamic crash tests defined in the regulations, and every structural repair must be documented for scrutineering.

2.2 Impact Attenuators and Nose Structures

The nose cone and rear impact structure are designed to crush, not to resist. They are built from laminates that fail in a controlled, progressive manner, converting kinetic energy into fracture work instead of transferring it to the driver and the fuel cell. The fiber type, the lay-up sequence and the trigger geometry all influence the crush load, and this is one of the more demanding design tasks in the whole car.

2.3 Roll Hoops, Side Intrusion Panels and Cockpit Liners

Roll hoops must survive a defined vertical and lateral load without intruding into the driver's survival space, which makes high-strength carbon fiber the natural choice for both the hoop and its mounting structure. Side intrusion panels sit between the driver and the outside world, combining aramid fiber for toughness with carbon fiber for stiffness so that a sharp object or another car's nose is stopped rather than allowed to penetrate.

Cockpit liners and headrest surrounds use the same material logic, adding energy-absorbing foam where direct contact with the driver is possible.

3. Aerodynamic and Bodywork Components

Aerodynamics is the other great composite discipline in racing, and it consumes an enormous quantity of product because wings, floors and body panels are designed to be replaced after every contact.

3.1 Wings, Endplates and Floor Assemblies

Front and rear wings are highly loaded aerodynamic structures that must be stiff enough to maintain their shape under hundreds of kilograms of downforce yet light enough not to dominate the car's mass budget. They are typically built as thin carbon fiber skins over a core, with metal or composite inserts at the mounting points to spread the load into the monocoque. Endplates and floor edges are frequently sacrificial and are designed to break away cleanly in a collision.

3.2 Body Panels, Diffusers and Underbody Parts

Engine covers, sidepods, floor sections and diffusers make up the visible skin of a racing car. They need stiffness, heat tolerance and a high-quality surface finish, and they are produced in large numbers because each event consumes several sets. Prepreg laid into a mould and cured under vacuum or in an autoclave gives the best surface and the most consistent fiber volume fraction, while resin infusion offers a lower-cost route for larger, less critical panels.

3.3 Fasteners, Access Panels and Quick-Release Hardware

A racing car is taken apart constantly, so the way panels are attached matters as much as the panels themselves. Composite brackets, quick-release fasteners and bonded inserts reduce part count, save weight and allow a damaged section to be changed in minutes. Carbon fiber plate is commonly machined into brackets, mounting plates and reinforcement doublers for exactly this purpose, because it can be cut and drilled to a precise shape while retaining high strength.

4. Suspension, Brakes and Drivetrain

Unsprung and rotating components are where weight reduction pays the highest return, because removing mass there improves both acceleration and the ability of the suspension to follow the road.

4.1 Wishbones, Pushrods and Uprights

Suspension wishbones and pushrods are classic carbon fiber tube and bonded assembly applications, often made with aramid fiber added to the lay-up so that the component bends rather than shatters if it is struck. Uprights, which carry the wheel bearing loads, are more heavily loaded and are manufactured from high-modulus carbon fiber around metal inserts, with the fiber direction aligned to the dominant load paths.

4.2 Brake Ducts, Disc Backing and Heat Shielding

Brakes in racing operate at extreme temperatures, and the components around them must manage heat as well as structure. Carbon fiber ducts and backing plates are used where stiffness and low mass matter, while pre-oxidized fiber and aramid-based heat shields protect nearby composite panels, wiring and hydraulic lines from radiant and convective heat. Pre-oxidized fiber is particularly useful because it does not melt or burn, so it keeps insulating even at temperatures that would destroy an ordinary textile.

4.3 Drive Shafts, Propshafts and Gearbox Housings

A carbon fiber drive shaft saves weight, reduces rotational inertia and, by absorbing some of the vibration and shock loading in the driveline, reduces the load transmitted back into the gearbox and differential. In a racing application the shaft is usually a filament-wound tube with bonded metal ends, which gives high torsional stiffness in a very light package. Gearbox housings, bell housings and covers increasingly use carbon fiber where the structure carries bending and torsional loads rather than gear contact forces.

5. Safety Equipment and Driver Protection

Driver protection in racing draws on the high-performance fiber family rather than carbon fiber alone, because toughness and fire resistance matter as much as stiffness.

5.1 Aramid Fiber in Suits, Helmets and HANS Devices

Para-aramid fiber is the backbone of driver safety clothing. Its high strength and exceptionally high energy absorption make it ideal for the layers that resist abrasion and penetration in a sliding impact, and its thermal stability allows it to be blended into fire-retardant garments that resist ignition and slow heat transfer. Racing suits combine aramid with other flame-resistant fibers in multiple layers, each optimised for a different threat: flame, heat flux, abrasion or impact.

Aramid fabric is also used in helmet shells and in the tethers and structures of head and neck restraint systems, where the material must hold a defined load without stretching and without failing suddenly.

5.2 Fire-Retardant Layers and Cockpit Fire Barriers

Fire in a racing car is rare but catastrophic, so the car is built with a series of barriers. Between the fuel cell and the cockpit, between the engine bay and the driver, and around the electrical systems, manufacturers install fire-resistant composite and textile layers that are designed to hold a flame front long enough for the driver to escape. Pre-oxidized fiber felts and aramid fabrics are common choices because they are non-combustible or self-extinguishing and remain stable at high temperature.

5.3 Seats, Headrests and Energy-Absorbing Foam

A racing seat is a custom-fitted safety device, usually moulded from a carbon fiber or aramid composite shell with energy-absorbing foam padded to the driver's body. The rigidity of the shell keeps the driver in position and transmits crash loads to the chassis, while the foam and the surrounding padding control the deceleration experienced by the head, torso and legs. Composite headrests add lateral support and are engineered to absorb side impact energy in the same way as the main cockpit structure.

6. Wheels, Interiors and Garage Equipment

Composite use in racing extends well beyond the car itself, into the equipment and structures that support a race weekend.

6.1 Composite Wheels and Wheel Covers

Carbon fiber wheel rims reduce unsprung and rotating mass, which improves both suspension response and acceleration. They are demanding components because they carry high combined loads and must pass rigorous fatigue and impact testing, but their weight advantage over aluminium is significant. Wheel covers and aerodynamic fairings are also made from carbon fiber sheet and formed fabric, because they need stiffness at almost no weight.

6.2 Race Seats, Steering Wheels and Interior Panels

Steering wheels are typically carbon fiber or aramid composite frames carrying controls, displays and quick-release mechanisms, designed to be light and to deform rather than spear the driver in a crash. Interior panels, dashboards and floor plates use carbon fiber plate and laminate because they are stiff, thin, easy to machine and easy to form into complex shapes.

6.3 Pit Equipment, Stands and Transport Structures

Pit lane equipment must be light enough to move quickly and strong enough to be abused by a crew wearing gloves. Carbon fiber and aramid are used in jack handles, wheel nut guns, trolley frames and lifting equipment, as well as in the stands, work surfaces and transport racks that carry cars and components between events. Composite tooling, including carbon fiber moulds and mandrels, is also used to make the car parts themselves, because a composite mould is lighter, more dimensionally stable and quicker to produce than a steel equivalent.

7. Materials Selection Matrix for Racing Applications

The table below maps the main racing duty points to the recommended Tanchain product form and the property that drives the selection. It is intended as a specification starting point, not a substitute for project-specific engineering.

7.1 Reading the Matrix

The matrix is organized by duty point because that is how a race car is actually specified: the engineer starts with a load case and a mass target, then selects the material form that meets both. Read each row as a package of product, reason and conventional alternative. Most cars combine many rows at once, and the practical benefit of a single supplier is greatest when fabric, prepreg, tube, plate and machined parts arrive with consistent quality data and compatible delivery schedules.

8. Build, Repair and Quality Control

Racing rewards disciplined composite practice more than any other field, because the parts are made in small numbers, used at the limit and inspected after every session.

8.1 Lay-Up, Curing and Bonding Practice

The fiber direction, the stacking sequence, the resin content and the cure cycle determine the properties of the finished laminate, so each of these is a controlled parameter rather than an operator preference. Prepreg requires controlled storage, a defined lay-up room and a documented cure, while infusion and wet lay-up must manage resin flow and void content carefully. Bonded joints need correct surface preparation, adhesive selection and bond-line thickness, because the adhesive, not the fiber, is usually the weakest link in an assembly.

8.2 Crash Repair and Structural Inspection

Composite structures can often be repaired after a crash, but the repair must restore the original load path rather than merely hide the damage. Standard practice is to scarf back the damaged laminate to a defined taper, replace the plies in their original orientation and cure under vacuum, then verify the result. Inspection relies on visual examination, tap testing, and ultrasonic or radiographic methods where the structure is safety-critical.

8.3 Documentation and Traceability for Scrutineering

Racing is a regulated activity, and composite parts are increasingly subject to documentation requirements. Material certificates with batch traceability, laminate schedules, cure records and repair reports should be retained so that a component's history can be demonstrated at scrutineering or at resale. Good documentation also makes it far easier to diagnose a failure, because the material and process record for that part is available.

9. Why Tanchain for Motorsport Material Programs

A racing program needs a material supplier who can cover a whole car without forcing the team to manage a dozen vendors. Tanchain manufactures carbon fiber filament, staple fiber, fabric, prepreg, pultruded tube and profile, and machined plate at the core of the monocoque, bodywork, suspension and driveline scope, together with aramid filament, staple fiber and fabric for impact protection, driver safety equipment and fire barriers, and pre-oxidized fiber staple, filament, yarn, felt and fabric for high-temperature insulation and heat shielding.

That range means a single order can cover monocoque laminates, wing skins, wishbone tubes, a propshaft, driver suit fabric, brake heat shields and tooling material, with consistent documentation and delivery scheduling. Material certificates, batch traceability and technical data are provided as standard, and our team supports the specification stage with product selection and processing guidance for both prepreg and infusion routes.

Browse the Tanchain carbon fiber, aramid fiber and pre-oxidized fiber product range, or send us your component drawings, load cases and weight targets. Our engineering team will review the duty of each part, recommend the product forms and lay-up route, and provide a complete material package for the motorsport application, from the monocoque laminate to the heat shielding around the brakes.
