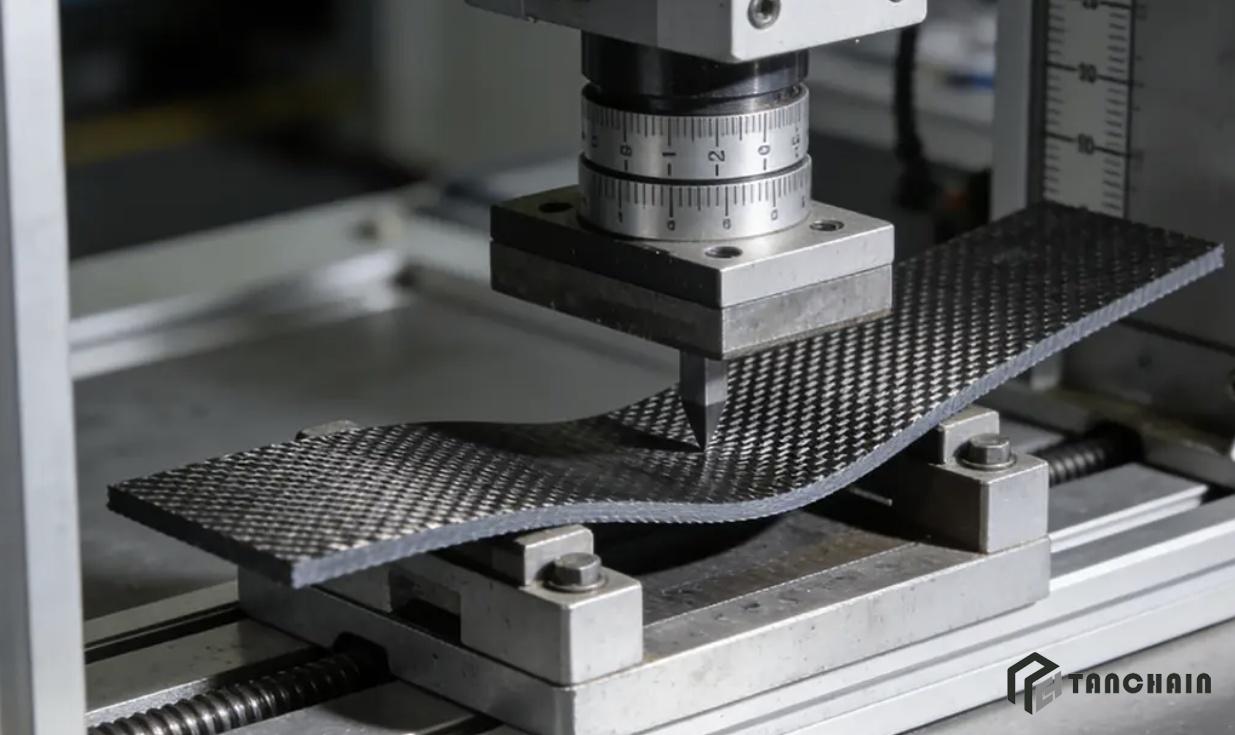

Carbon fiber in electronics manufacturing has moved from the laboratory bench to the production floor. The semiconductor, display, printed circuit board and consumer device industries all depend on machinery that must move quickly, stop precisely and stay dimensionally stable for years of continuous operation. Those three requirements — speed, precision and stability — are exactly where carbon fiber composites outperform aluminium and steel, and they explain why carbon fiber electronics equipment is now specified in wafer fabs, SMT lines and assembly plants worldwide.

This article maps the electronics industry component by component. It shows where carbon fiber is already used, which material form suits each application, how aramid and pre-oxidized fiber complement it, and what buyers should confirm before placing an order.

1. Why the Electronics Industry Adopts Carbon Fiber Composites

Electronics manufacturing is a low-tolerance business. A machine that drifts a few micrometres out of alignment produces defective wafers or misregistered solder joints, and the cost of that scrap dwarfs the price difference between an aluminium part and a composite one.

Four properties of carbon fiber reinforced polymer (CFRP) address that reality directly. CFRP offers the stiffness of steel at roughly one quarter of its density. It has a very low coefficient of thermal expansion, so a moving axis does not change length when the drive motor warms up. It damps vibration internally instead of ringing like a bell. And it does not corrode, which matters in fabs where humidity, cleaning chemicals and process gases are everywhere.

2. Wafer Handling: End Effectors, Forks and Blade Tips

Semiconductor wafer handling is the most demanding carbon fiber electronics application. A wafer handling robot accelerates a 300 mm silicon wafer through a vacuum transfer chamber dozens of times per hour. The end effector — the flat fork or blade that carries the wafer — must be light enough to accelerate fast, stiff enough not to sag, and clean enough not to shed particles.

Carbon fiber plate and carbon fiber tubes are the standard answer. A thin, machined carbon fiber wafer fork weighs a fraction of an aluminium equivalent, which reduces motor torque, shortens settling time and lets the robot move more wafers per hour. Because the laminate can be laid up with a tailored fiber orientation, the fork stays flat under load and its natural frequency stays well above the robot excitation range.

Wafer wand tips and vacuum pick-up faces follow the same logic. The composite surface is stable, does not gall or burr, and can be polished and coated for cleanroom compliance. Suppliers also offer carbon fiber end effectors with controlled electrical conductivity to avoid electrostatic discharge damage to sensitive devices.

3. Robot Arms, Gantries and Linear Axes

Inside electronics assembly lines, Cartesian gantries and SCARA or articulated robot arms place components at high cycle rates. Every kilogram removed from the moving mass pays back twice: the axis accelerates faster, and the frame that supports it can be lighter as well.

Carbon fiber tube and pultruded carbon fiber profiles are widely used for gantry beams, Z-axis masts, cantilever arms and pick-and-place heads. A carbon fiber cantilever axis holds its shape under its own weight much better than a steel beam of the same stiffness, which keeps the nozzle or gripper square to the board at every speed.

The damping behaviour matters as much as the weight. After a rapid positioning move, a well-designed CFRP axis settles in fewer oscillations, so the machine can measure or dispense sooner. That short settling window is one of the least visible and most valuable benefits of carbon fiber in electronics manufacturing equipment.

4. Dispensing, Inspection and Optical Gantries

Solder paste printing, adhesive dispensing, automated optical inspection (AOI) and X-ray inspection all mount sensors on moving structures. Cameras and laser heads are heavy, and their accuracy depends on the rigidity of the frame that carries them.

A carbon fiber gantry keeps optical inspection heads aligned across a large board area without the thermal growth that would shift focus on an aluminium frame. The low coefficient of thermal expansion of carbon fiber composites is critical here: as machine temperature rises during a long production shift, the optical path length stays almost constant.

Dispensing heads benefit in the same way. A light, stiff carbon fiber mounting plate means the nozzle travels on a predictable path, so adhesive dots stay the same size from the first board of the shift to the last.

5. Test Sockets, Probes and Metrology Fixtures

Electrical test and metrology are areas where dimensional stability is the whole point. Wafer probe stations, probe cards, test fixtures and calibration frames must hold their geometry over millions of contact cycles and across temperature swings.

Machined carbon fiber plate is used for fixture bases, stiffening ribs, probe card stiffeners and metrology frame members. Because the material has low thermal expansion and high specific stiffness, a carbon fiber fixture keeps probe contact force consistent and reduces measurement uncertainty. Carbon fiber is also used in reference spheres and precision spacers for coordinate measurement equipment.

6. Thermal Management in Electronic Equipment

Electronics generates heat, and heat shortens the life of almost every device. Two material families from the technical textile world support this part of the industry.

Carbon fiber composites with a suitable matrix have good through-plane and in-plane thermal conductivity for heat spreader plates and cold-wall mounting hardware. Pre-oxidized fiber, meanwhile, is used as a thermally stable, electrically non-conductive barrier — flame-resistant felt, fabric and board around heat sources, battery compartments, power supplies and exhaust ducts. Because pre-oxidized fiber does not melt or drip, it also serves as a fire barrier inside cabinets and enclosures.

Aramid fiber adds a third capability. Aramid fabric is tough, impact resistant and electrically insulating, which makes it a good choice for protective liners, cable wraps and cover panels in electronic hardware.

7. Enclosures, Racks and Portable Devices

The consumer and industrial electronics sectors have probably done more than any other field to make carbon fiber visible to the public. Laptop chassis, tablet frames, camera bodies, drone-mounted electronics, ruggedised handhelds and server rack panels all use carbon fiber for a simple reason: it makes the device thinner and lighter while staying stiff.

In equipment racks and cabinets, carbon fiber plate and sandwich panels replace steel where weight, corrosion or electrical isolation matter. In marine electronics, mobile broadcast and portable medical equipment, where a device is carried rather than installed, the weight saving is the decisive factor.

Carbon fiber short fiber and milled carbon fiber compounds are the high-volume route into this sector. Chopped and milled fiber is compounded into engineering thermoplastics for injection moulding, producing internal brackets, chassis inserts, connector housings and covers with improved stiffness, creep resistance and dimensional stability at a competitive unit cost.

8. Material Forms and Where Each One Fits

Choosing carbon fiber for an electronics application is not one decision, it is a series of them. Each product form suits a different load path and production volume.

Carbon fiber plate is machined into wafer forks, fixture bases, brackets, gussets and probe card stiffeners. It holds tolerance and stays flat in damp or temperature-controlled environments.

Carbon fiber tubes and pultruded profiles become gantry beams, robot arms, masts and frame members. Constant cross-section, certified dimensions and easy cutting and drilling make them practical for machine builders.

Carbon fiber prepreg and carbon fiber fabric are used where a component has a compound curvature or must be moulded to shape — covers, shrouds, ducting and custom housings.

Carbon fiber short fiber and milled carbon fiber feed injection moulding for complex, high-volume parts.

Aramid long filament, aramid staple fiber and aramid fabric provide impact toughness and electrical insulation. Pre-oxidized fiber yarn, felt and fabric provide flame resistance and thermal protection. Blending these families lets a designer place stiffness, insulation and fire performance exactly where each is needed.

9. What to Confirm Before Ordering

Electronics buyers are usually more demanding than buyers in other industries, and the specification conversation reflects that. The questions that matter most are straightforward.

Confirm the stiffness direction that carries the load. Confirm the thermal expansion requirement and match it to the machine's operating temperature window. Confirm the surface and cleanliness requirement if the part enters a cleanroom or a vacuum chamber. Confirm whether the part must be electrically conductive, static dissipative or fully insulating — this alone can change the fiber and resin selection. And confirm traceability, because electronics supply chains increasingly require documented material origin and consistent batch properties.

A supplier who understands the end use, not just the fiber, will advise on fiber orientation, laminate thickness, coating and insert design at the quotation stage, which avoids rework later.

10. Industry Outlook

Demand for carbon fiber in electronics equipment is rising for reasons that will not change soon. Chip features keep shrinking, boards keep getting denser, inspection resolution keeps improving, and every one of those trends tightens the alignment budget of the machinery that does the work. At the same time, portable and wearable electronics keep pushing down the weight of every enclosure.

The practical result is that carbon fiber, aramid and pre-oxidized fiber have become ordinary engineering choices in electronics manufacturing rather than exotic ones — specified for the same reason they are specified in aerospace, rail and wind energy: they make precise machines more precise and light devices lighter.

Shanghai Tanchain New Material Technology supplies carbon fiber plate, carbon fiber tube, carbon fiber fabric, carbon fiber prepreg, carbon fiber short fiber, aramid filament and fabric, and pre-oxidized fiber in staple, filament, yarn, felt and fabric forms, with technical support for electronics equipment programmes. To review specifications or request a quotation, visit our product pages or contact our team directly.
